Sewage Pump PH–1200

SKU: vv 285

Manufacturer: Pavliš a Hartmann

Sewage Pump PH–1200 PH-1200 sewage pump is designed for fire brigades to fill up fire engine tanks with water from outdoor natural water sources, to pump out water from flooded areas and rooms. PH-1200 sewage pump can also be used for other applications,

Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

Sewage Pump PH–1200

PH-1200 sewage pump is designed for fire brigades to fill up fire engine tanks with water from outdoor natural water sources, to pump out water from flooded areas and rooms. PH-1200 sewage pump can also be used for other applications, e.g. agriculture, building sites, etc.

Main Specifications:

Max. flow	1 210 l / min
Total head	26 m
Max. suction depth	8 m
Suction connection	Coupling B75 (2½”)
Discharge connection	Coupling B75 (2½”)
Engine	Honda GX 270
Engine power	6.3 kW / 8.4 HP
Fuel tank capacity	5.3 l
Fuel	unleaded petrol (BA 95)
Device dimensions (L x W x H) complete version	690 x 540 x 535 mm
Device dimensions (L x W x H) basic version	670 x 540 x 535 mm
Dry weight (empty) complete version	69 kg
Dry weight (empty) basic version	67 kg

Pump	Cat. No.
Sewage pump PH – 1200 complete	vv 285
Sewage pump PH – 1200 basic	vv 286

WARNING: Do not operate the pump in closed rooms – danger of carbon monoxide poisoning!!!

Complete version of the PH–1200 sewage pump is fitted with a tiltable handle and transport rollers for better handling of the sewage pump.
Basic version of the PH-1200 sewage pump is not equipped with this feature so the pump can only be handled using its steel frame. Inlet and outlet are fitted with quick couplings (B75 type).

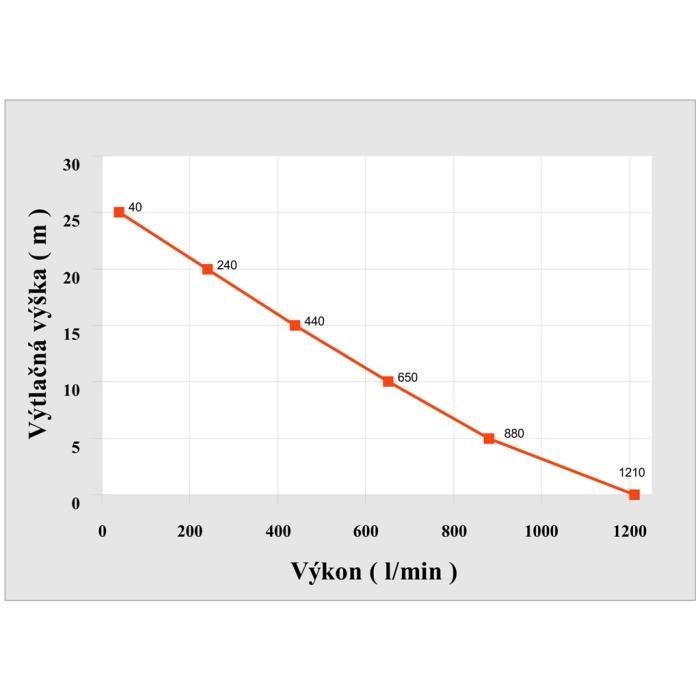

Parameters
