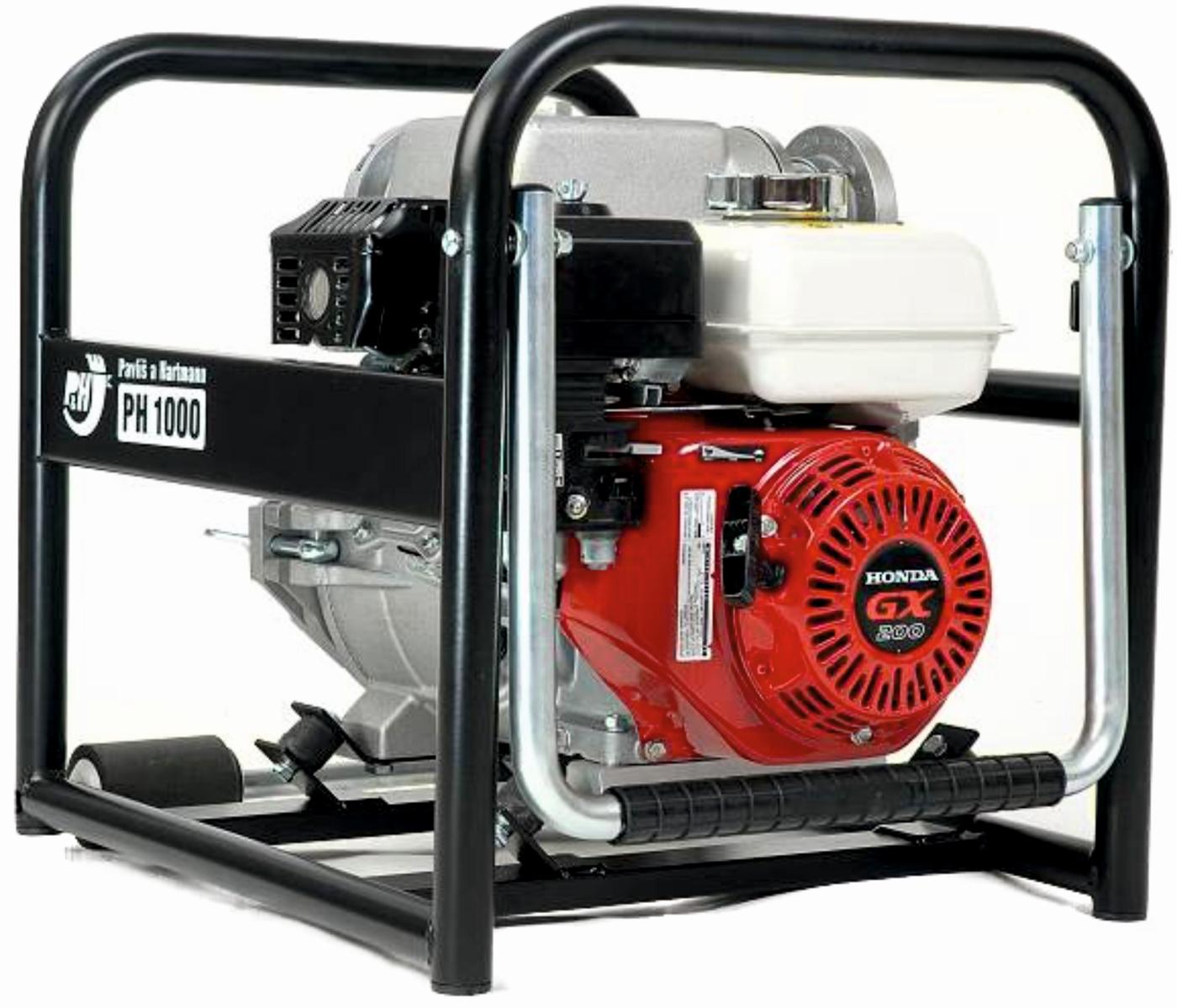

Sewage Pump PH–1000

Name: Sewage Pump PH–1000
Brand: Pavliš a Hartmann
SKU: vv 282
Availability: InStock

SKU: vv 282

Manufacturer: Pavliš a Hartmann

Sewage Pump PH–1000

Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

Sewage Pump PH–1000

PH-1000 sewage pump is designed for fire brigades to fill up fire engine tanks with water from outdoor natural water sources, to pump out water from flooded areas and rooms. PH-1000 sewage pump can also be used for other applications, e.g. agriculture, building sites, etc.

PH - 1000 sewage pump is designed for fire brigades to fill up fire engine tanks with water from outdoor natural water sources, to pump out water from flooded areas and rooms. PH - 1000 sewage pump can also be used for other applications, e.g. agriculture, building sites, etc.

Complete version of the PH–1000 sewage pump is fitted with a tiltable handle and transport rollers for better handling of the sewage pump.
Basic version of the PH–1000 sewage pump is not equipped with this feature so the pump can only be handled using its steel frame. Inlet and outlet are fitted with quick couplings (B75 type).

WARNING: Do not operate the pump in closed rooms – danger of carbon monoxide poisoning!!!

Main Specifications:

Max. flow	1 060 l / min
Total head	25 m
Max. suction depth	8 m
Suction connection	Storz B75 (2½”)
Discharge connection	Storz B75 (2½”)
Engine	Honda GX 200
Engine power	4.1 kW / 5.5 HP
Fuel tank capacity	3.1 l
Fuel	unleaded petrol (BA 95)
Device dimensions (L x W x H) complete version	600 x 490 x 535 mm
Device dimensions (L x W x H) basic version	580 x 490 x 535 mm
Dry weight (empty) complete version	58 kg
Dry weight (empty) basic version	56 kg
