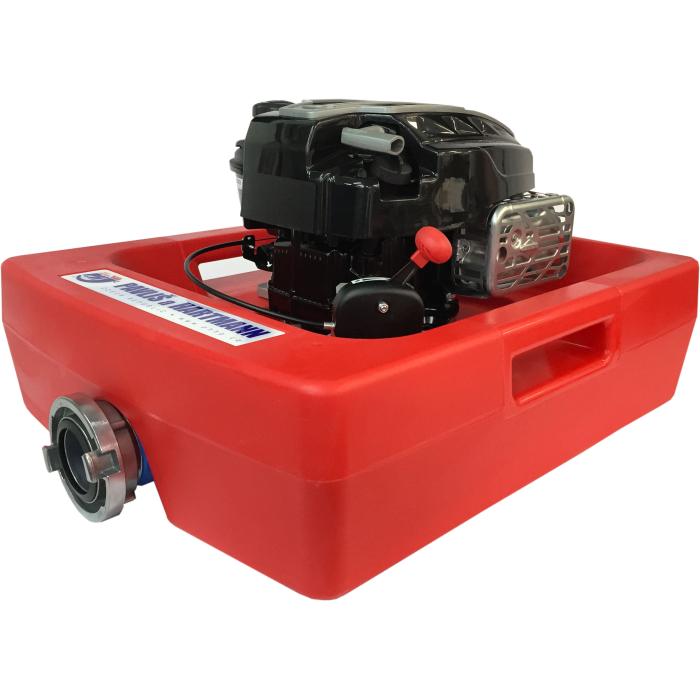

Portable floating pump PH-Poseidon 1 BS Supra

    SKU: vv 450

    Manufacturer: Pavliš a Hartmann

    Portable floating pump PH-Poseidon 1 BS Supra

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Portable floating pump PH-Poseidon 1 BS Supra

    The device can be used by fire brigades to replenish fire engine tanks with water from outdoor natural water sources. It can also be used to pump out water from flooded areas and rooms and for other applications, e.g. agriculture, building sites, etc.

    Description of the PORTABLE FLOATING PUMP PH-Poseidon 1 BS Supra

    Configuration engine Briggs & Stratton PXi 1000
    pump type centrifugal – aluminium casing
    float polyethylene block with handles
    runner

    cast iron casting/ bronze on request



    Application

    The pump casing of Al-alloy is bolted to the engine flange and the float. The bottom side of the casing is fitted with a stainless grid to prevent access of dirt and debris exceeding 10 mm in diameter. The delivery outlet of the PH–POSEIDON 1 BS Supra is fitted with a  Storz B75 hose coupling.

    The new float body is made of polyethylene by centrifugal injection as one block. The integrated handles make it easy to handle and carry the pump and can also be used to fix a rope to prevent the pump from floating away.

    The design of the pump allows dry-running without damage.

    Main specifications:

    Max. flow 1 180 l/min
    Total head 43 m
    Discharge connection Storz B75 (2,5")
    Engine Briggs & Stratton PXi 1000
    Engine power 5,3 kW / 7,2 HP
    Fuel capacity additional tank 3,8 l
    Fuel unleaded petrol (BA 95)
    Float dimensions (L x W x H) 710 x 610 x 380 mm
    Device dimensions (L x W x H) 710 x 610 x 410 mm
    Dry weight 29,4 kg





    Cat. number vv 450



    The data was measured by the accredited testing laboratory TÚPO No. 1011-2

    Parameters
    • Engine: Briggs & Stratton PXi 1000
    • Maximum discharge height: 43 m
    • Max. flow: 1 180 l/min
