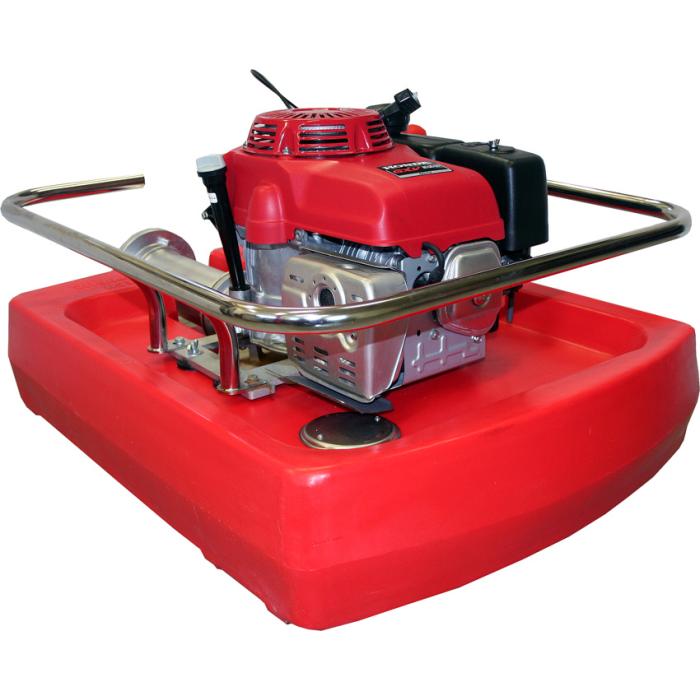

Portable Floating pump PH-Mammoth-2400

    SKU: vv 287

    Manufacturer: Pavliš a Hartmann

    Portable Floating pump PH-Mammoth-2400 The device is designed to deliver high amounts of water, drain lagoons resulting from flooding, replenish fire engine tanks with water from outdoor natural water sources. It can also be used in other applications, s

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Portable Floating pump PH-Mammoth-2400



    The device is designed to deliver high amounts of water, drain lagoons resulting from flooding, replenish fire engine tanks with water from outdoor natural water sources. It can also be used in other applications, such as agriculture, building sites, etc.

    Complete device

    Engine: HONDA GXV 390 Supporting plate: Al Mg5Si1Mn
    Pump Casing: centrifugal type-Al casting Runner: Al Mg5Si1Mn
    Float: Polyethylene/polyurethan Suction cover:

    Al Mg5Si1Mn



    Main specifications:

    Max. flow 2 512 l/min
    Total head 24 m
    Discharge connection Storz A110 (4”)
    Engine Honda GXV 390
    Engine power 7.6 kW / 10.2 HP / 13HP (SAEJ1995)
    Fuel tank capacity 2.1 l
    Fuel unleaded petrol (BA 95)
    Float dimensions (L x W x H) 980 x 710 x 200 mm
    Device dimensions (L x W x H) 1080 x 730 x 500 mm
    Dry weight (empty) 55,9 kg





    Cat. number vv 287

    The pump and the engine are in one unit, so the pump cannot be used independently. The engine shaft goes through the pump block without a sealing. The pump block is bolted to the engine through the supporting plate and the pump cannot be connected to any other engine type. The bottom side of the block is fitted with a cover to prevent debris and particles over 20 mm in diameter. The delivery outlet is fitted with an A110 (4") Storz coupling.

    The float body is made of polyethylene by centrifugal injection as one block. The internal wall has about 20 mm of hard polyurethane foam in order to increase resistance to breakthrough which guarantees unsinkability of the device. This design of the float features outstanding stability on the water surface. The frame is used both for carrying and handling the unit and also for fixing a rope to secure it in its position.
    The design of the pump allows dry-running without damage.

    Warning: The pump must not be run in enclosed areas as there is a danger of carbon oxide poisoning!





    Parameters
    • Engine: Honda GXV 390
    • Maximum discharge height: 24 m
    • Max. flow: 2 512 l/min
