Nozzles Tajfun – Turbo B75 and Tajfun – Turbo R B75

The 75 R design nozzle is made up of the nozzle body with a supporting elbow with a handle and revolving head in aluminium alloy. The nozzle body is covered with a plastic sleeve and a head with a contoured rubber layer.

The revolving head allows for smooth adjustment of the stream pattern from spray to jet stream and shut-off position. This is achieved by half a turn of the head. The inlet is fitted with a B75 rigid Storz coupling to ČSN 38 9427. The nozzle of the 75 design has no supporting elbow and the B75 Storz coupling is fitted directly on the nozzle body. All materials were chosen with respect to the extreme stress to which the nozzle may be exposed during a fire action.

The nozzle is designed for water using full jet and spray stream, in particular for fighting fires in areas with dust and easily swirling substances such as coal, flour, etc. It will find its use in coal management facilities in power industry, coal boiler rooms, silos, joiner´s shops, farming facilities and for forest fires. When used for apartment fires, we recommend using dispersed fog for a maximum extinguishing effect with minimum consumption of water in order to minimize damage resulting from the action.

Tajfun - Turbo B75

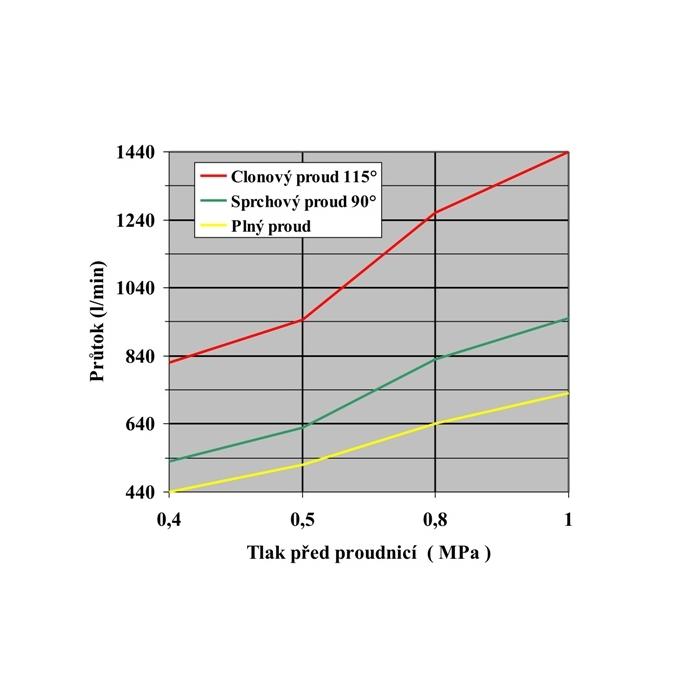

Specifications

Tajfun - Turbo R B75

Specifications
