Hydrant system with dimensionally stable hose D25 Kombi -20bm - nozzle equ.6

    SKU: skvvd 009/ekv6

    Manufacturer: Pavliš a Hartmann

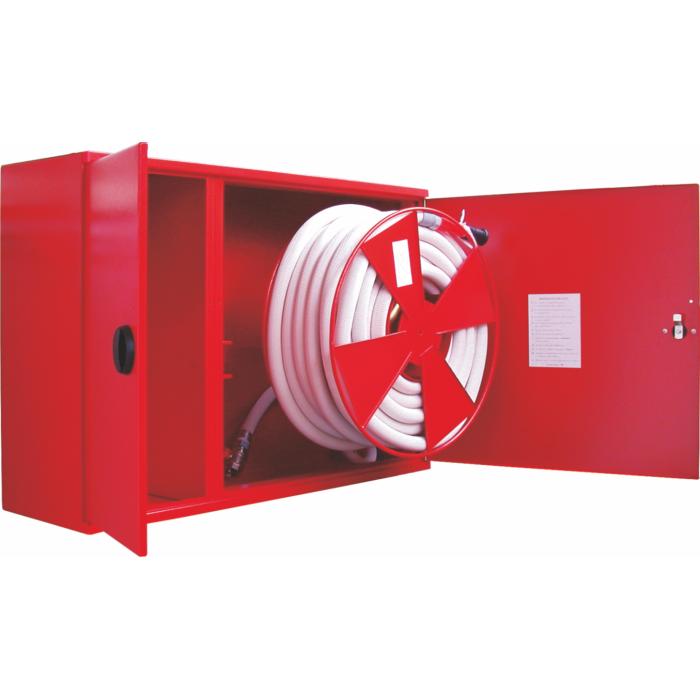

    Hydrant system with D25 semi-rigid hose and a cabinet for fire extinguisher. Both cabinets are within one block.

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Hydrant system with dimensionally stable hose D25 Kombi -20bm - nozzle equ.6

    Approved to ČSN 73 0873 and ČSN EN 671-1. Hydrant system with D25 semi-rigid hose and a cabinet for fire extinguisher. Both cabinets are within one block.

    Hydrant system includes

    1. Hydrant cabinet and extinguisher box – made of 1 mm steel sheet. Pressurized water supply, brought through the centre of the reel, enabling immediate use of the system.
      Surface treatment – textured powder coating designed for indoor environment (outdoor design possible by agreement with the manufacturer). Version with solid door.
    2. PH – stabil D25 semi-rigid hose of 20 or 30 m length.
    3. Combined D25 spray fire nozzle equivalent 6mm – flow rate Q < 1.1 L/sec or equivalent 10mm – Q > 1.1 L/sec.
    4. D25 connection hose of 1m length with DN25-1” made of nickel-plated brass is used to connect the system to water main.
    Dimensions Hose  Fire jet Cat. No.
     950 x 650 x 285 20m of D25 equiv. 6  skvvd 009/6
     950 x 650 x 285 20m of D25 equiv. 10  skvvd 009/10
     950 x 650 x 285 30m of D25 equiv. 6  skvvd 004/6
     950 x 650 x 285 30m of D25 equiv. 10  skvvd 004/10

    The hose systems are to be installed at the mounting height between 1.1 m and 1.3 m above the floor (measured to the centre of equipment). Their position should allow easy reach and it should be possible to open the door up to 180°. For the installation it is necessary to provide sufficient water supply so that a minimum overpressure of 0.2 MPa is guaranteed in the least favourable place.

    Application

    After opening the cabinet and checking that the nozzle is shut off, open the ball valve on the inlet (the system fills with water). Unwind the required length of hose from the reel up to the place of fire and turn head of the nozzle to adjust the required shape of water stream.

    Downloads

    HS D25 KOMBIpdf280.13 KB

    Parameters
    • Hose - diameter: D25
    • Hose length: 20 m
    • Nozzle: eq. 6
    • Dimension: 950x650x285 mm
    • The door: full
    • Colour: red
