Hydrant system with dimensionally stable hose D19 -20bm - full door - nozzle eq.6

    SKU: svv 211

    Manufacturer: Pavliš a Hartmann

    The enclosure is replaced by a frame made of closed profiles for D19 hydrant systems to be recessed into the wall.

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Hydrant system with dimensionally stable hose D19 -20bm - full door - nozzle eq.6

    Approved to ČSN 73 0873 and ČSN EN 671-1

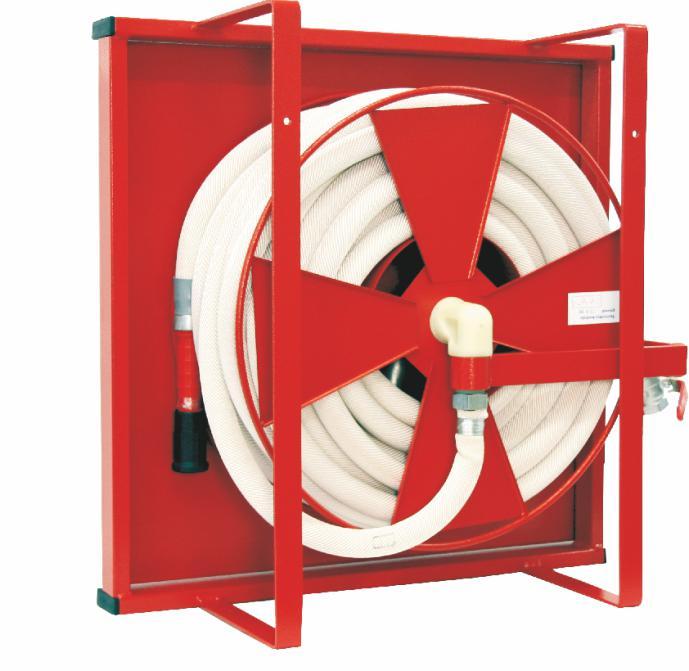

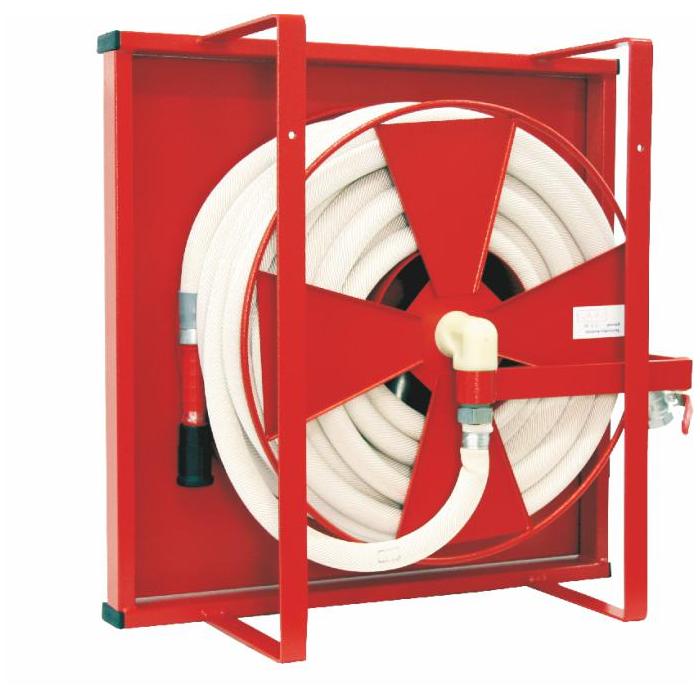

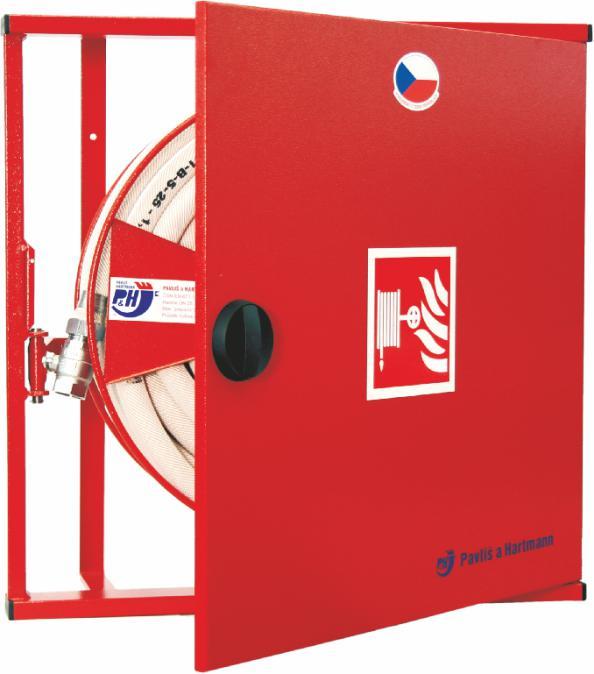

    The cabinet of the recess mounted D19 and D25 hydrant system is replaced with a frame made of square profiles. This frame is used to fix the reel arm and the door is fitted with a revolving lock, there is a possibility of attaching a seal.

    Hydrant system includes

    1. Frame of square profiles fitted with a swinging arm with a reel and a door. Two anchors are used to fix the frame to the wall or plaster board using dowels and installation foam. Pressurized water supply brought through the centre of the reel enabling immediate use of the system.
    2. 19 or 25 mm PH – stabil D semi-rigid hose.
    3. Nickel-plated brass ball valve (D19-3/4” systems).
    4. Combined D25 fire nozzle consisting of a polypropylene body and revolving head. The revolving head makes it possible to set a jet or spray stream with an adjustable spraying angle within the range 0 – 110° and to shut off the nozzle.
    5. Connection hose used to connect the system to water main.

    This system offers the advantage of better access when connecting to water mains, longer service life and higher stiffness of the frame.

    Drainage of the cabinet is made by an installation company through an opening of approx. 2x2 cm in the wall under the bottom edge of the frame.

    Recess mounted hydrant system D19

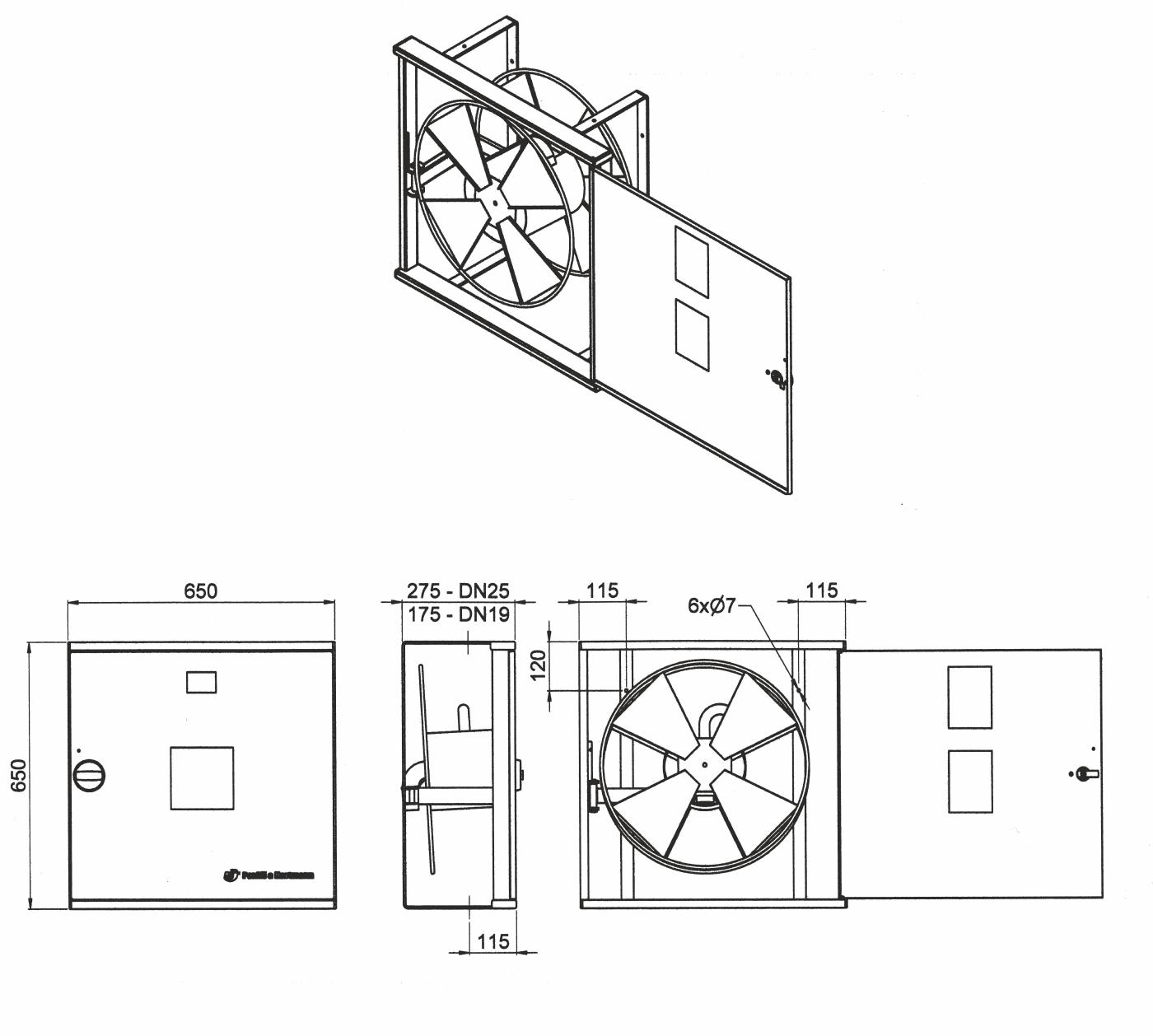

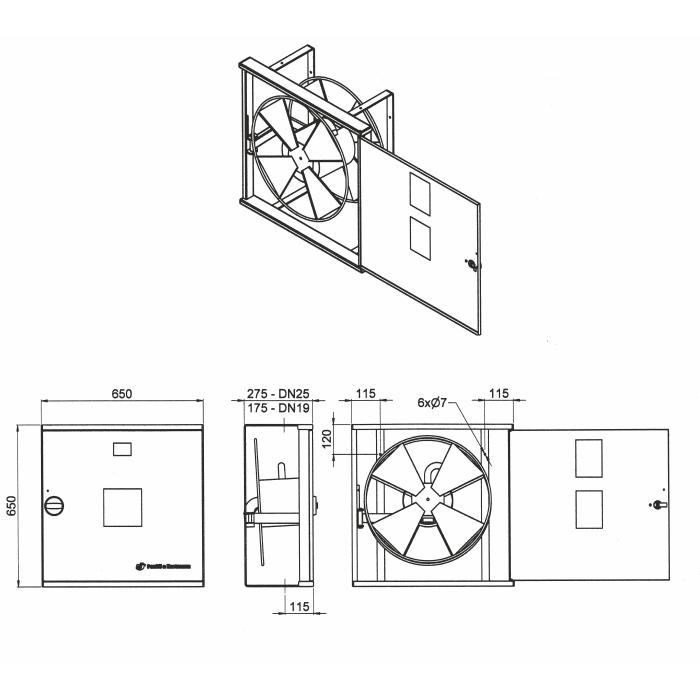

    • 650 x 650 x 175 mm – hose of 20 or 30m length can be used.

    Inspection of hydrant systems is to be undertaken by a trained person in accordance with applicable standards and regulations.

    Recess mounted D19 hydrant systems

    Dimensions
    (width x height x depth)
    Door Hose Fire nozzle Cat No.
    650 x 650 x 175 solid 30 m of D19 equiv. 6 svv 210
    650 x 650 x 175 solid 20 m of D19 equiv. 6 svv 211

    Downloads

    Recess mounted HS D25pdf382.94 KB

    Recess mounted HS D19pdf328.28 KB

    Parameters
    • Hose - diameter: D19
    • Hose length: 20 m
    • Nozzle: eq. 6
    • Dimension: 650x650x175 mm
    • The door: full
    • Colour: red
