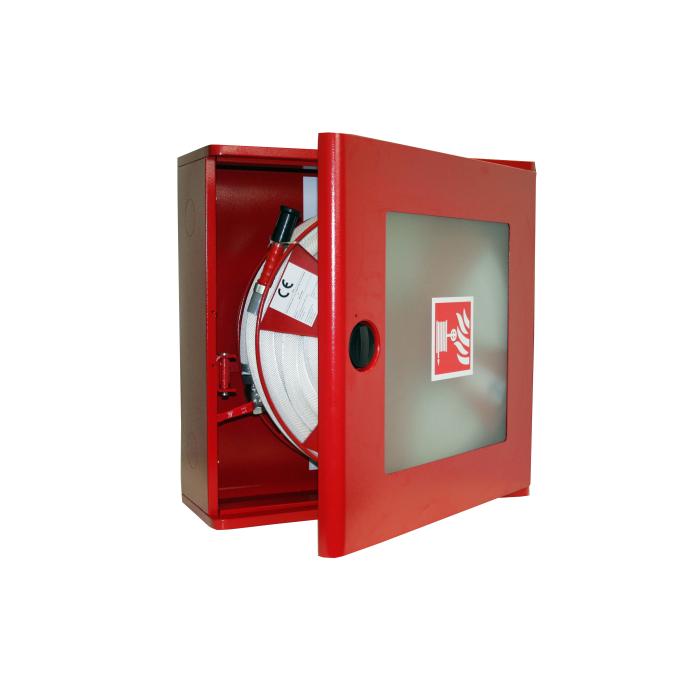

Hydrant system PH-Plus with hose D25 - 30bm - glass door - nozzle eq. 10 - RED

SKU: svv 506/C

Manufacturer: Pavliš a Hartmann

Hydrant systems with D19 and D25 semi-rigid hose PH-Plus Company Pavliš a Hartmann extended range of hydrant systems by new types PH - Plus.

Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

Hydrant system PH-Plus with hose D25 - 30bm - glass door - nozzle eq. 10 - RED

Cabinet colour RAL 3000 structural red.

According ČSN EN 671-1

Hydrant Systems meet the norm ČSN EN 671-1. The cabinets feature hi body sturdiness, stability and new design. Apart from basic colours red structural RAL 3000 white structural RAL 9003 and anthracite RAL 7016 structural, we offer even different colour design.

Hydrant system consists of

Steel cabinet with swinging arm and hose reel
19 or 25 mm PH – stabil D semi-rigid hose 20 or 30 meters long
D 25 spray fire nozzle with equivalent 6 or 10 millimetres
equiv. 6mm – flow rate Q < 1,1 l/sec
equiv. 10mm - flow rate Q > 1,1 l/sec
Connection hose D19 or D25, length 1,4 m, with ball valve 3/4´´ or 1´´ used to connect the system to water main

Inspection of hydrant system is to be undertaken by a trained person in accordance with applicable standards and regulations.

Hydrant systems with D19 semi-rigid hose PH-Plus

Dimensions (mm)	Door	Hose	Nozzle	Cat. No./colour
710 x 710 x 200	solid	D19 - 30 bm	equiv. 6	svv 500
710 x 710 x 200	solid	D19 - 20 bm	equiv. 6	svv 501
710 x 710 x 200	glass-panelled	D19 - 20 bm	equiv. 6	svv 502
710 x 710 x 200	glass-panelled	D19 - 30 bm	equiv. 6	svv 503

Hydrant systems with D25 semi-rigid hose PH-Plus

Dimensions (mm)	Door	Hose	Nozzle	Cat. No./colour
710 x 710 x 245	solid	D25 - 30 bm	equiv. 10	svv 504
710 x 710 x 245	solid	D25 - 20 bm	equiv. 10	svv 505
710 x 710 x 245	glass-panelled	D25 - 30 bm	equiv. 10	svv 506
710 x 710 x 245	glass-panelled	D25 - 20 bm	equiv. 10	svv 507
710 x 710 x 245	solid	D25 - 30 bm	equiv. 6	svv 508
710 x 710 x 245	solid	D25 - 20 bm	equiv. 6	svv 509
710 x 710 x 245	glass-panelled	D25 - 30 bm	equiv. 6	svv 510
710 x 710 x 245	glass-panelled	D25 - 20 bm	equiv. 6	svv 511
