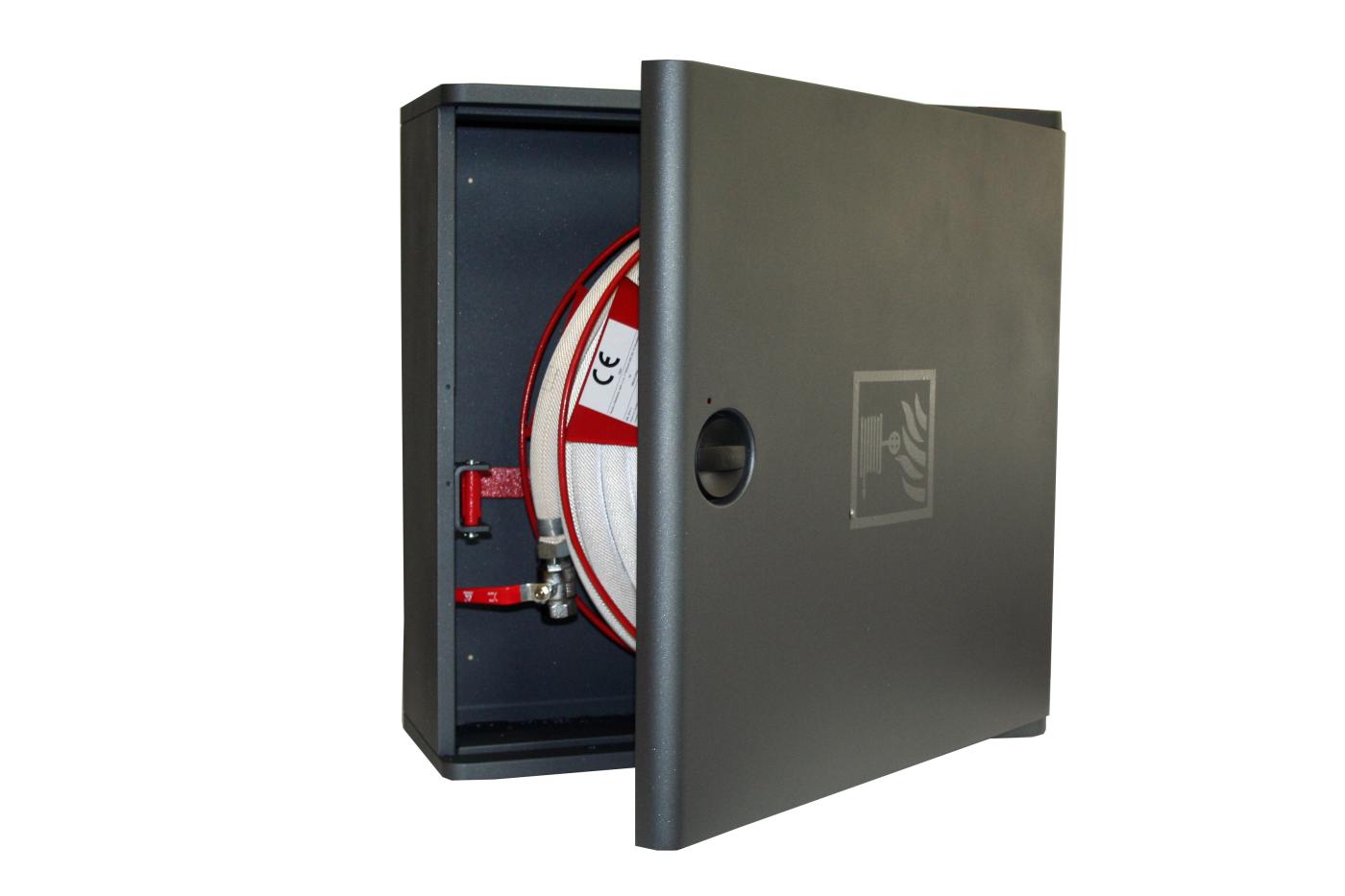

Hydrant system PH-Plus with hose D19 - 20bm - full door - nozzle eq. 6 - ANTRACIT

SKU: svv 501/A

Manufacturer: Pavliš a Hartmann

Hydrant systems with D19 semi-rigid hose PH-Plus Company Pavliš a Hartmann extended range of hydrant systems by new types PH - Plus.

Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

Hydrant system PH-Plus with hose D19 - 20bm - full door - nozzle eq. 6 - ANTRACIT

Cabinet colour anthracite structural.

According ČSN EN 671-1

Hydrant Systems meet the norm ČSN EN 671-1. The cabinets feature hi body sturdiness, stability and new design. Apart from basic colours red structural RAL 3000 white structural RAL 9003 and anthracite RAL 7016 structural, we offer even different colour design.

Hydrant system consists of

Steel cabinet with swinging arm and hose reel
19 PH – stabil D semi-rigid hose 20 or 30 meters long
D 25 spray fire nozzle with equivalent 6 or 10 millimetres
equiv. 6mm – flow rate Q < 1,1 l/sec
equiv. 10mm - flow rate Q > 1,1 l/sec
Connection hose D19 length 1,4 m, with ball valve 3/4´´ or 1´´ used to connect the system to water main

Inspection of hydrant system is to be undertaken by a trained person in accordance with applicable standards and regulations.

Hydrant systems with D19 semi-rigid hose PH-Plus

Dimensions (mm)	Door	Hose	Nozzle	Cat. No./colour
710 x 710 x 200	solid	D19 - 30 bm	equiv. 6	svv 500
710 x 710 x 200	solid	D19 - 20 bm	equiv. 6	svv 501
710 x 710 x 200	glass-panelled	D19 - 20 bm	equiv. 6	svv 502
710 x 710 x 200	glass-panelled	D19 - 30 bm	equiv. 6	svv 503
