MAIN TECHNICAL SPECIFICATIONS: |
|
|---|---|
| Weight: | 7,0 kg |
| Lenght: | 230 mm |
| Width: | 630 mm |
| Height: | 530 mm |
| Mixture flow rate: | 180 to 260 l/min |
| Pressure of the mixture at the inlet: | 0,4 - 1 MPa |
Foam Adapter for Booster Fan PH-VP450
SKU: vv 476
Manufacturer: Pavliš a Hartmann
Foam Adapter for Booster Fan PH-VP450
Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.
Foam Adapter for Booster Fan PH-VP450
This device for producing foam works by forming a water / surfactant (foam) mixture, with compressed air forced into the mix.

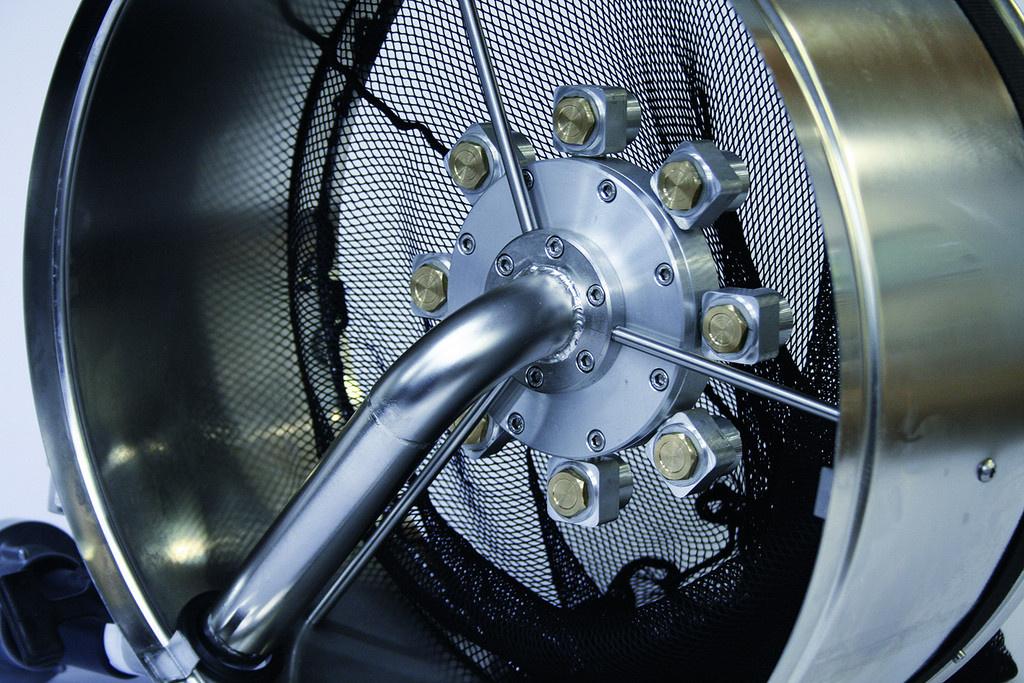

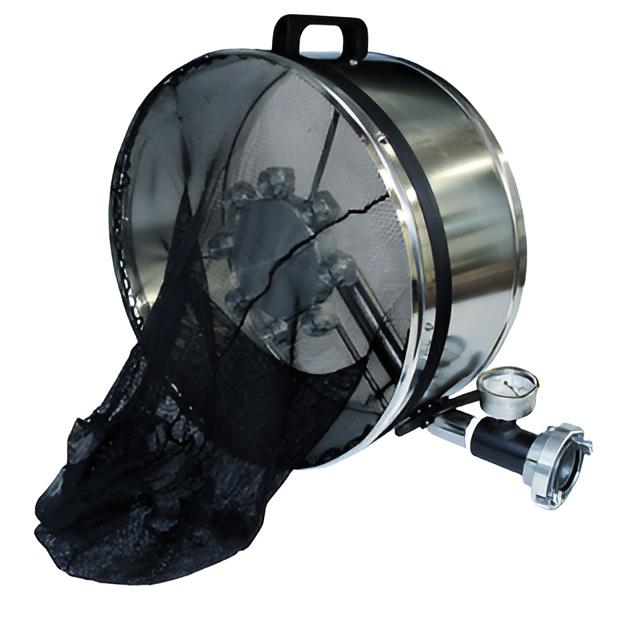

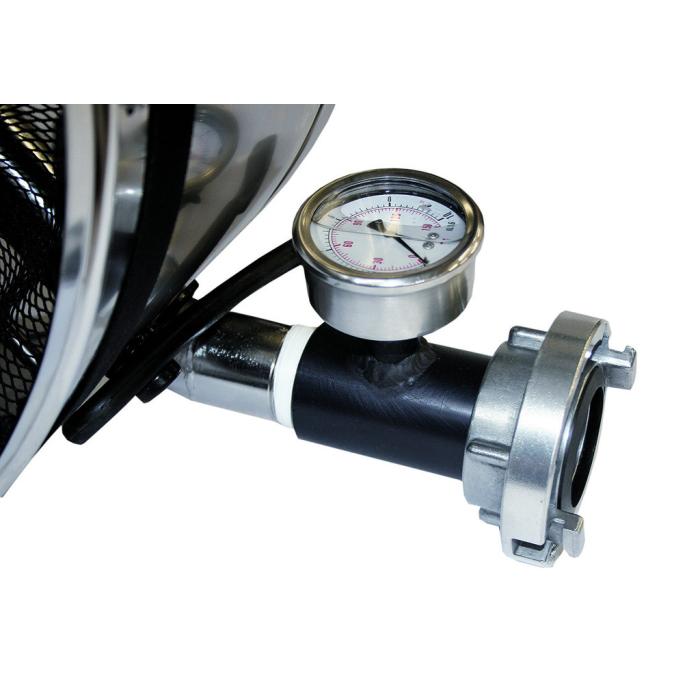

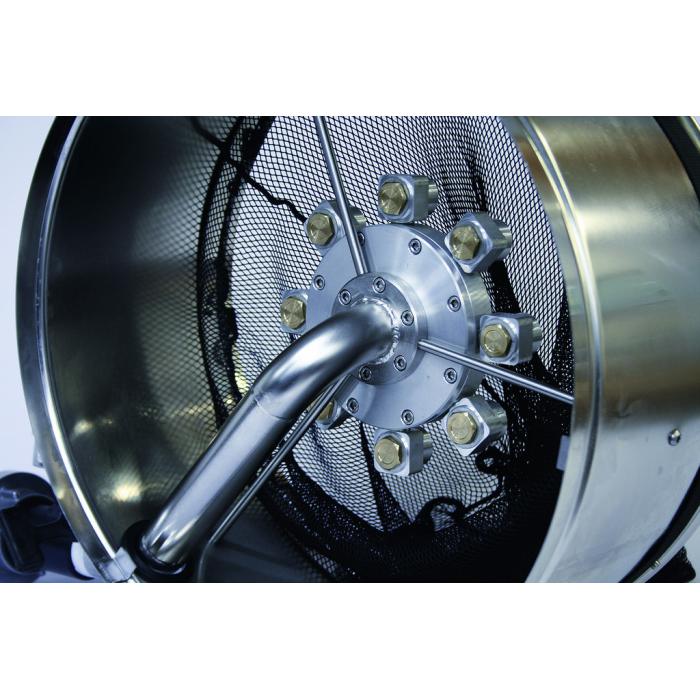

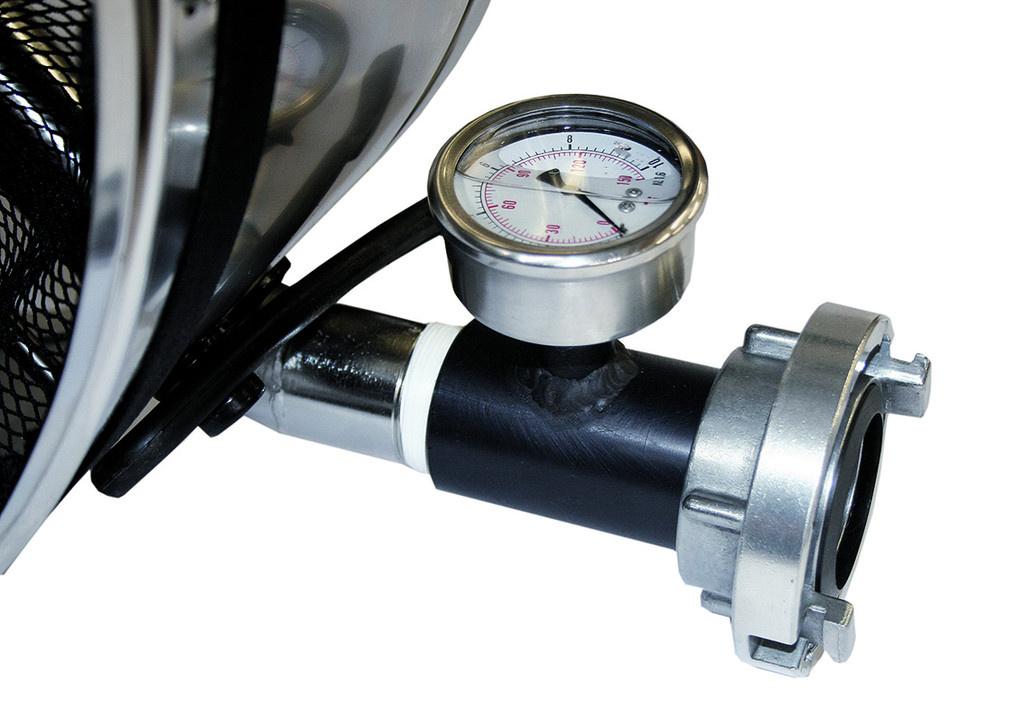

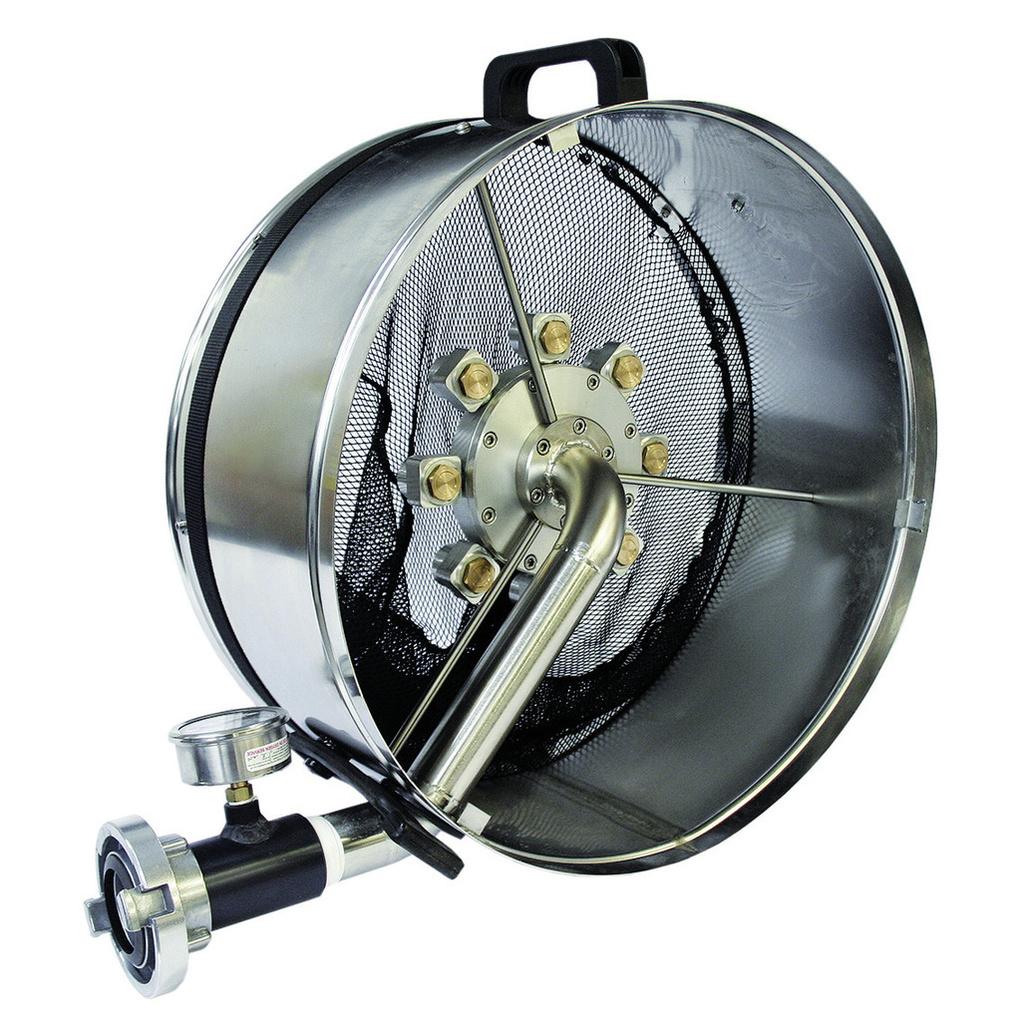

The portable foam adapter consists of a stainless steel body provided with rubber clamps for attachment to the PPV fan PH-VP450. The foam concentrate is transferred through a fixed distribution pipe equipped with 8 special water-jet nozzles. This integrated distribution pipe is intended to connect an external supply line, which is provided with a C52 coupling. The foaming net is attached to the adapter-housing with a stainless steel flange. Furthermore the foam adaptor is provided with a loop strap for fastening a PVC-duct in 4m. (2 pieces included)
| Cat. number | vv 476 |
