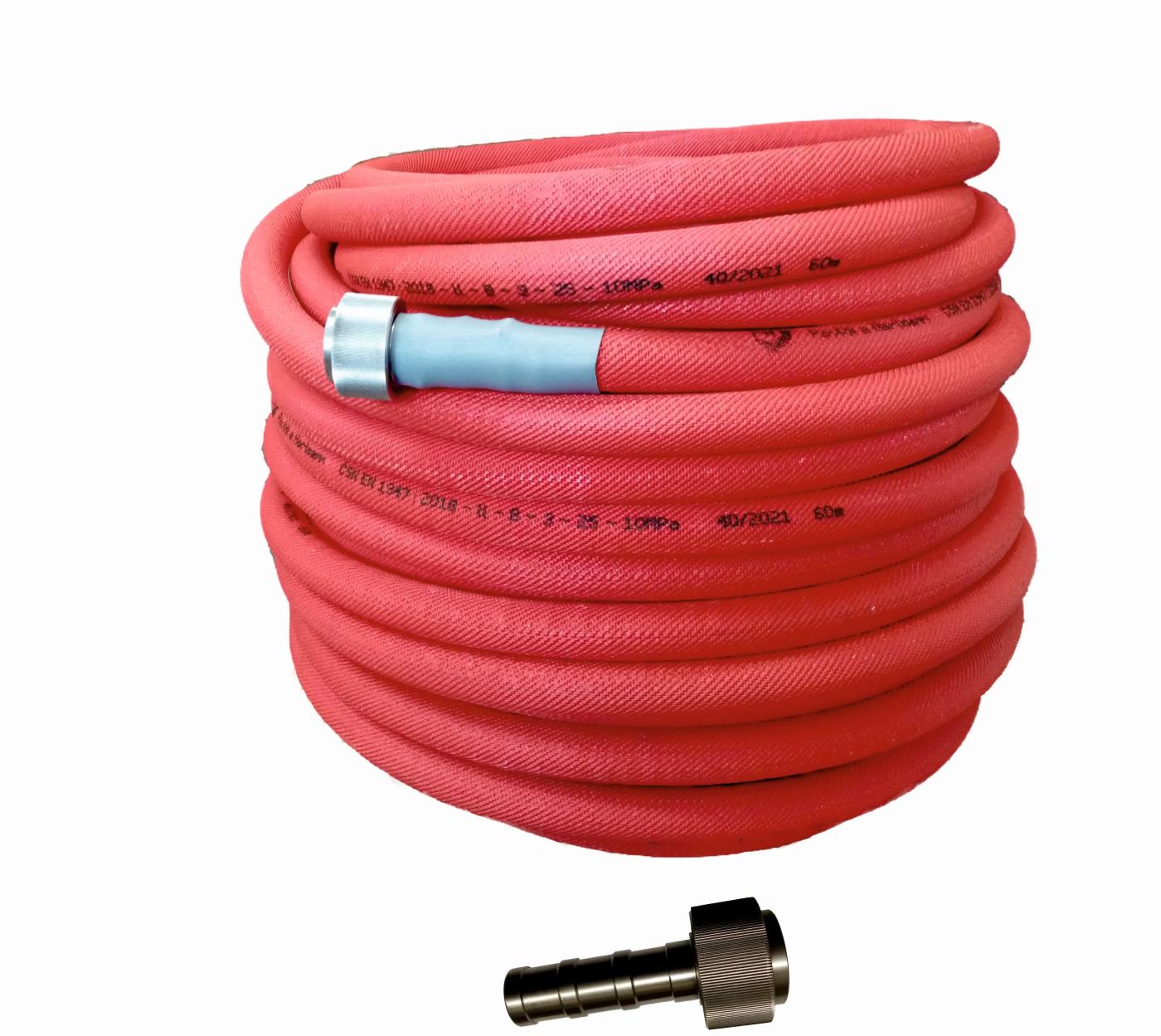

Fire hose PH - Stabil D25 - High pressure with coupling

    SKU: hvv 162

    Manufacturer: Pavliš a Hartmann

    PH - Stabil D25 - High pressure

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Fire hose PH - Stabil D25 - High pressure with coupling

    This hose can be used for temperatures from -30 ° C to + 70 ° C. It is not marked with colored stripes.

    The outer red color is made of high-strength PES yarn with an interwoven PET line, which holds the permanent shape of the hose and is provided with a polyurethane treatment to increase abrasion resistance. The inner liner is black rubber.

    The hose is suitable for equipping fire trucks, it can also be used in the tank of fire extinguishing systems.

    The hose can be provided with a pressure coupling, which consists of a body with a seal and a knurled union nut. The outer diameter of the body is 38 mm and the inner thread of the nut M45x1.5 mm. The coupling is connected to the hose by means of strength wire. The harnesses are equipped with a protective layer against injury.

    Hose length (m) 60
    Inside diameter (mm) 25
    Least fault pressure (MPa) 10
    Testing pressure(MPa) 6
    Working pressure (MPa) 4
    Weight without couplings (kg) 13,1
    Weight with couplings(kg) 13,7
    Coupling weight (kg) 0,28



    Catalogue No. without couplings hvv 161
    Catalogue No. with couplings hvv 162
    Parameters
    • Coupling: with coupling
    • Hose length: 60 m
