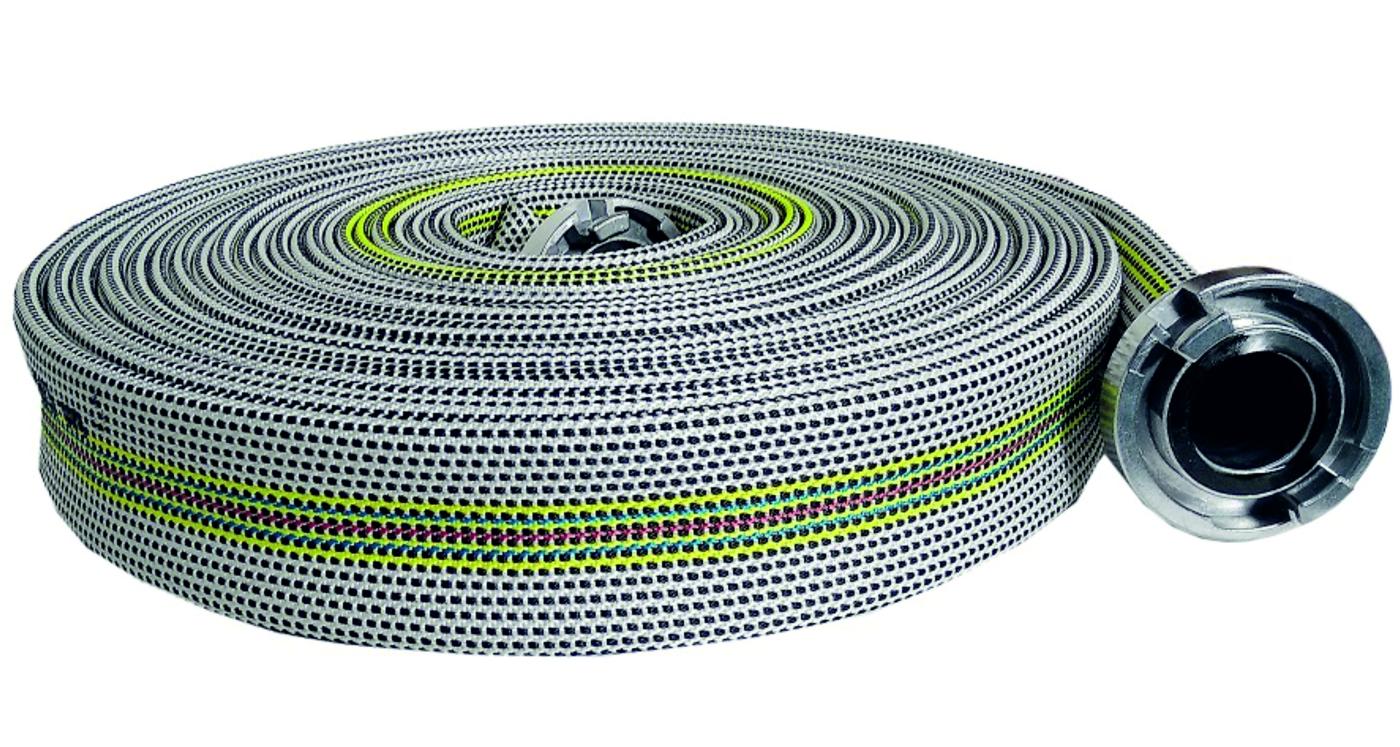

Fire hose PH - PROLINE C38 - with Al coupling 20m

    SKU: hvv 202

    Manufacturer: Pavliš a Hartmann

    PH - Proline C38 hose

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Fire hose PH - PROLINE C38 - with Al coupling 20m

    New hoses developed on PH - Action hoses.

    By strengthening the braid, especially in the warp, and supplementing the anti-abrasion scuffing, there was a significant increase in the abrasion resistance.

    This hoses are especially for using in the forest or mountain terrain. There is a high risk of mechanical damage.

    They consist of three layers. The outside layer is a high-strength PES yarn, the inside liner is black EPDM rubber and the middle, bonding layer is white. The destructive pressure of these hoses is in the table according to the type.

    Technical details hoses PH - PROLINE  C38

    Type of hose   PH-PROLINE C38 PH-PROLINE C42 PH-PROLINE C52
    Inside diameter (mm)   38 42 52
    Minimal failure pressure (MPa)   6,3 6,4 6,4
    Testing pressure (MPa)   2,4 2,4 2,4
    Working pressure (MPa)   1,6 1,6 1,6
    Weight without coupling (g/m)    282 300 366
    Weight with coupling (kg/20m)    6,1 6,7 7,9
    Length (m)   20 20 20

    These technical data are only informative.





    Trade name Comes with Catalogue No.
    PH-PROLINE C38 without coupling hvv 201
    PH-PROLINE C38 with Al coupling hvv 202
    PH-PROLINE C42 without coupling hvv 203
    PH-PROLINE C42 with Al coupling hvv 204
    PH-PROLINE C42 with forged coupling hvv 205
    PH-PROLINE C52 without coupling hvv 206
    PH-PROLINE C52 with Al coupling hvv 207
    PH-PROLINE C52 with forged coupling hvv 208



    Parameters
    • Coupling: coupling Al
    • Hose length: 20 m
