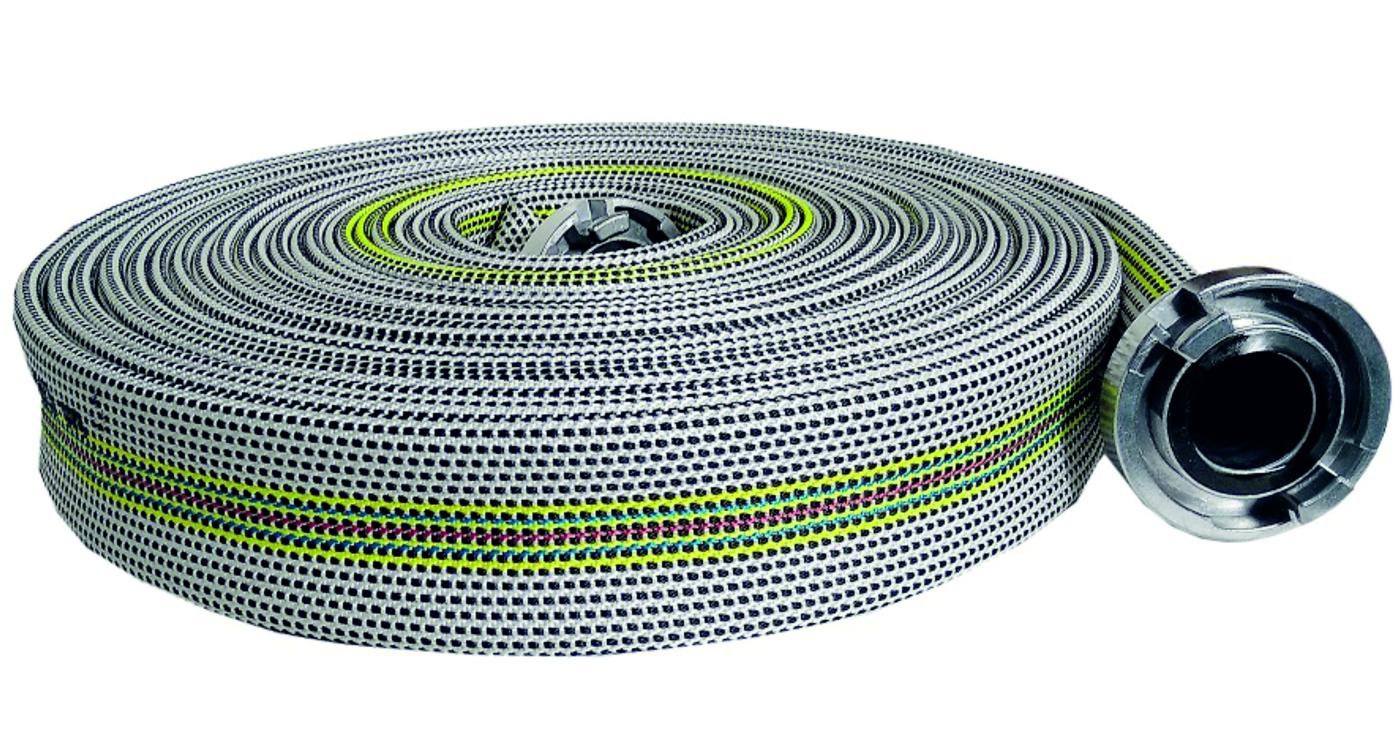

Fire hose PH - PROLINE B65 - with forged coupling 20m

    SKU: hvv 211

    Manufacturer: Pavliš a Hartmann

    PH - Proline B65 hose

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Fire hose PH - PROLINE B65 - with forged coupling 20m

    New hoses developed on PH - Action hoses.

    By strengthening the braid, especially in the warp, and supplementing the anti-abrasion scuffing, there was a significant increase in the abrasion resistance.

    This hoses are especially for using in the forest or mountain terrain. There is a high risk of mechanical damage.

    They consist of three layers. The outside layer is a high-strength PES yarn, the inside liner is black EPDM rubber and the middle, bonding layer is white. The destructive pressure of these hoses is in the table according to the type.

    Technical details hoses PH - PROLINE  B65

    Type of hose         PH-PROLINE B65
    Inside diameter (mm)         65
    Minimal failure pressure (MPa)         5,6
    Testing pressure (MPa)         2,4
    Working pressure (MPa)         1,6
    Weight without coupling (g/m)          498
    Weight with coupling (kg/20m)          11,1
    Length (m)         20

    These technical data are only informative.



    Trade name Comes with Catalogue No.
    PH-PROLINE B65 without coupling hvv 209
    PH-PROLINE B65 with Al coupling hvv 210
    PH-PROLINE B65 with forged coupling hvv 211



    Parameters
    • Coupling: with forged coupling
    • Hose length: 20 m
