Fire sport
This hose is designed especially for fire sport. It can be used at temperatures from -30°C to +70°C. It is marked by four colour strips: blue-red-blue-red.

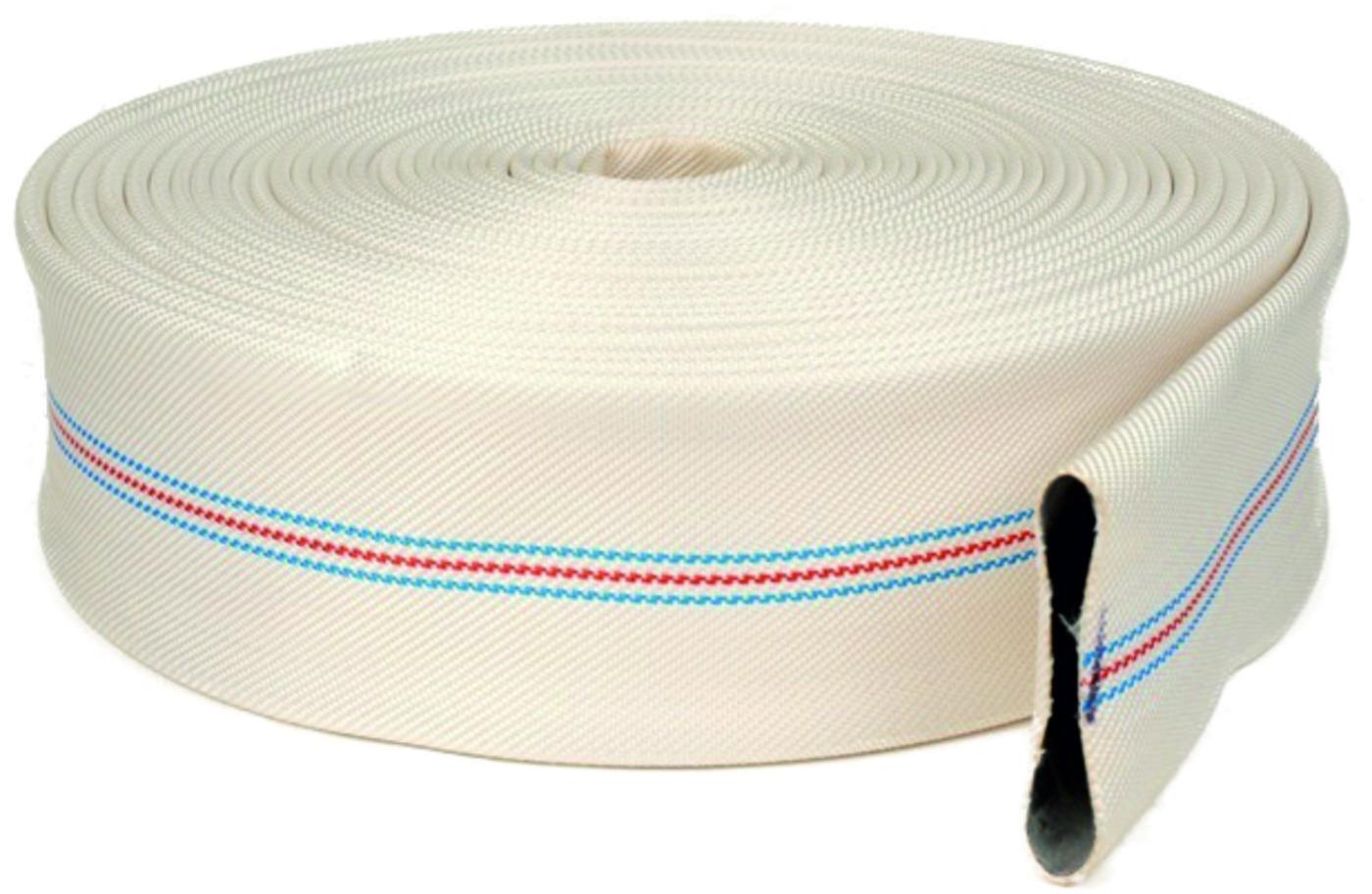

It can be used at temperatures from -30°C to + 70°C. It is marked by three colour stripes: blue- red-blue. The outside colour of the polyester fibre is white, the inside rubber liner is black. The hose is certified according to EN 1924-1. The hose B75 is certified according to ČSN 80 8711.
| Trade name of the hose | PH – ACTION B75 | |||||||
|---|---|---|---|---|---|---|---|---|
| Inner diameter (mm) | B75 | |||||||
| Minimum burst pressure (MPa) | 4.9 | |||||||
| Test pressure (MPa) | 2.4 | |||||||
| Working pressure (MPa) | 1.6 | |||||||
| Weight without coupling (g/m) | 385 | |||||||
| Weight with couplings (kg/20m) | 8,7 | |||||||
| Available lengths (m) | max. 50 |
Ordering specifications
| Trade name | Comes with | Catalogue No. |
|---|---|---|
| PH - ACTION B75 | with Al coupling | hvv 027 |
| PH - ACTION B75 | without coupling | hvv 026 |
All hoses can be equipped with couplings made of aluminium alloy approved according to ČSN 38 9431. Plastic couplings can also be supplied for hoses of the D-25 type.
