Fire Fighting Pump PH-ALFA BS 23HP

    SKU: vv 426

    Manufacturer: Pavliš a Hartmann

    Fire Fighting Pump PH-ALFA BS 23HP

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    Fire Fighting Pump PH-ALFA BS 23HP

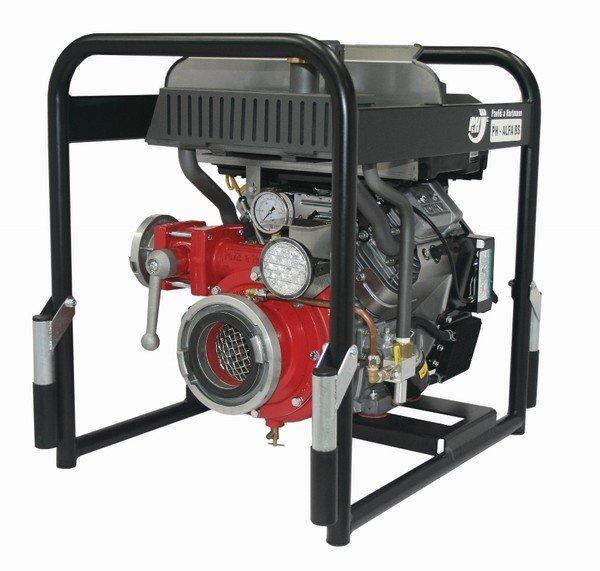

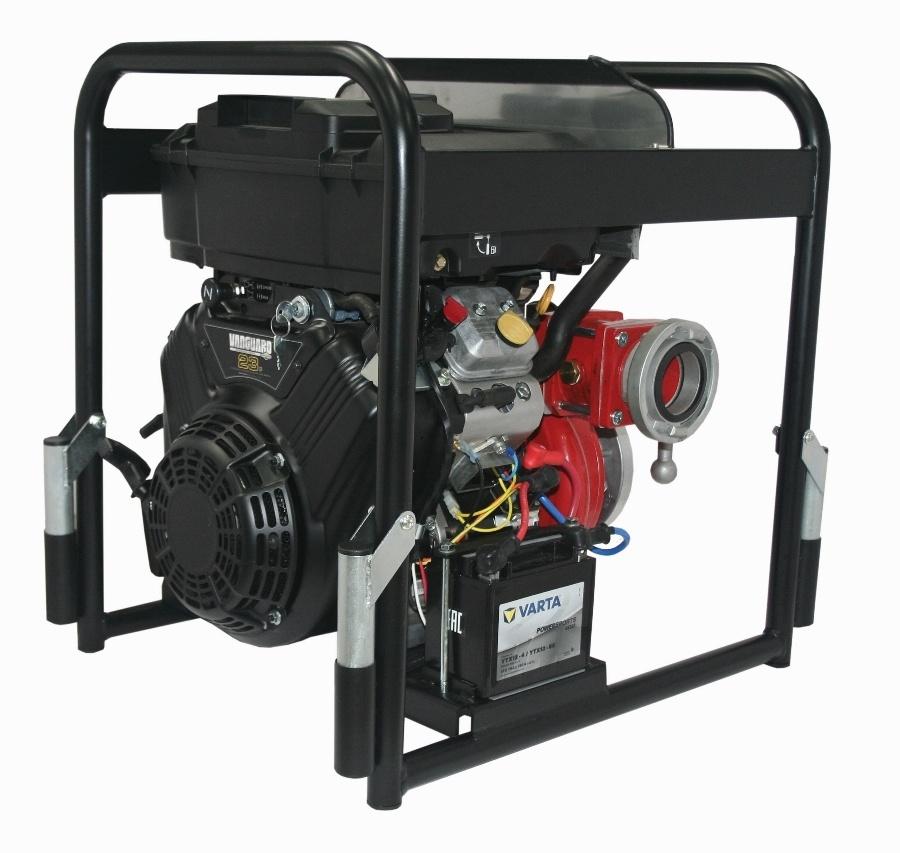

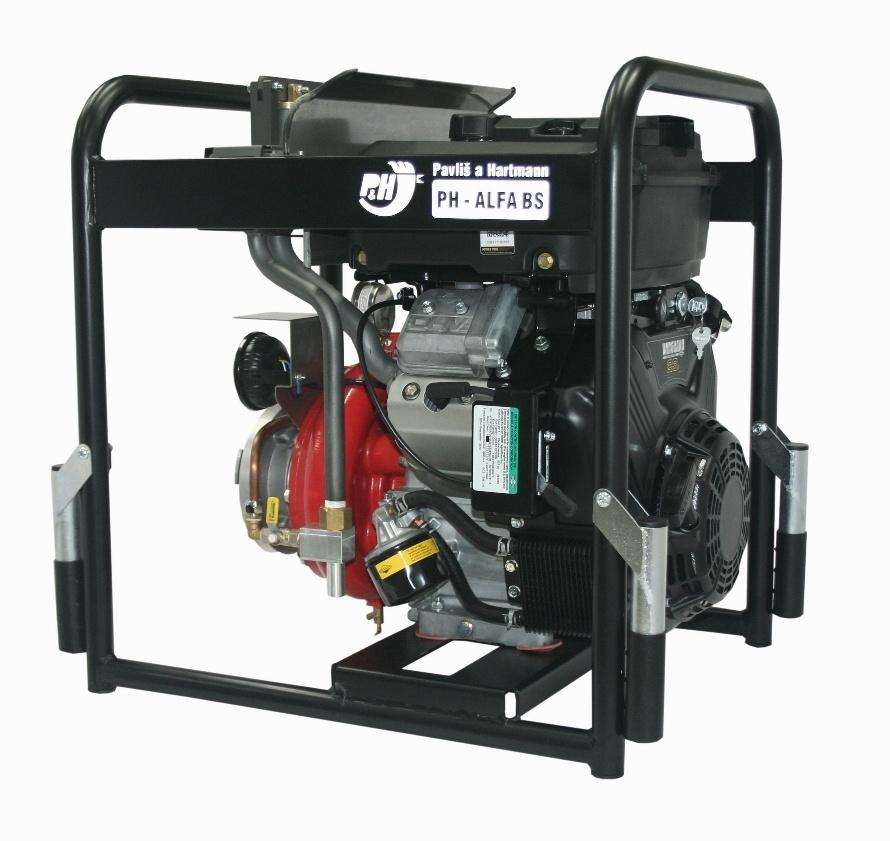

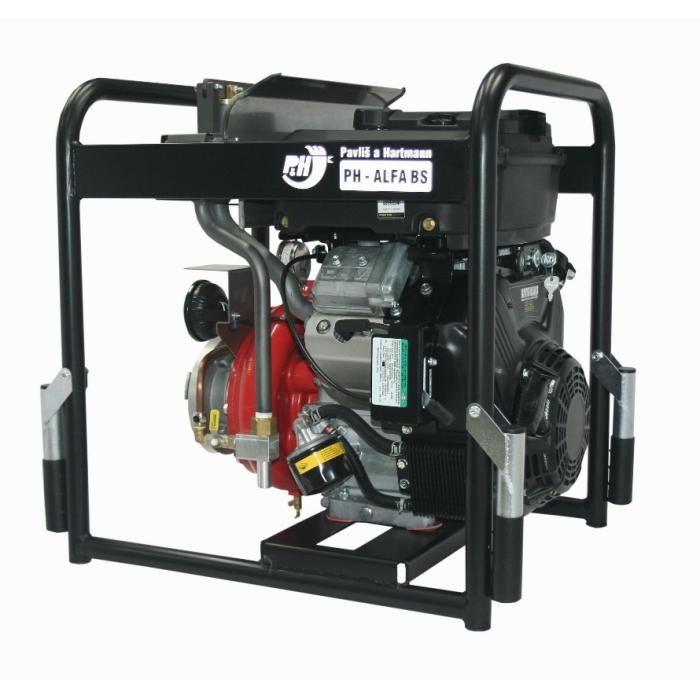

    The engine driven fire fighting pump PH-ALFA BS 23HP features a very low weight (only 88 kg, including the battery and full tanks) and a compact design. Due to its weight and size it can be very easily transferred by only two firefighters to the vicinity of fire, even in narrow and uneven areas. The fire fighting pump is provided with an electric as well with a manual (recoil) starter.

    Benefits of the PH-ALFA BS 23HP petrol-engine driven pump:

    • professional, two-cylinder, air-cooled, four-stroke OHV petrol engine with automatic mechanical speed control
    • powerful  pump chamber
    • fixed mounted motor-pump assembly in one construction unit
    • anti-vibration mounting of the unit
    • robust, ergonomically designed tubular frame
    • electric and manual (recoil) starter
    • conventional fuel
    • allows long-term full load
    • speed control
    • gas vacuum pump
    • pressure gauge at the outlet of the chamber
    • ball valve at discharge port
    • ceramic mechanical seal
    • equipped with lighting
    • bronze impeller
    • service support

    Device description and configuration:

        Basic configuration
    Engine: Briggs & Stratton 23HP
    Pump casing: high grade aluminium alloy (hydronal)
    Pump cover: high grade aluminium alloy (hydronal)
    Impeller: bronze
    Frame: welded steel



    The pump is fixed to the motor to form one unit. Therefore, it cannot be used separately. The motor shaft passes through the pump casing equipped with a seal. The pump housing has a cover with a suction port and discharge port with a ball valve.

    Never operate the pump without water as this may cause overheating leading to damage to the pump.

    The roll bar frame is welded from steel tubes coated with paint finish. The device is provided with hinged handles for handling of the pump.
    The fire fighting pump is provided with an electric as well with a manual (recoil) starter.

    Warning: The pump must not be run in enclosed areas as there is a danger of carbon oxide poisoning!!!

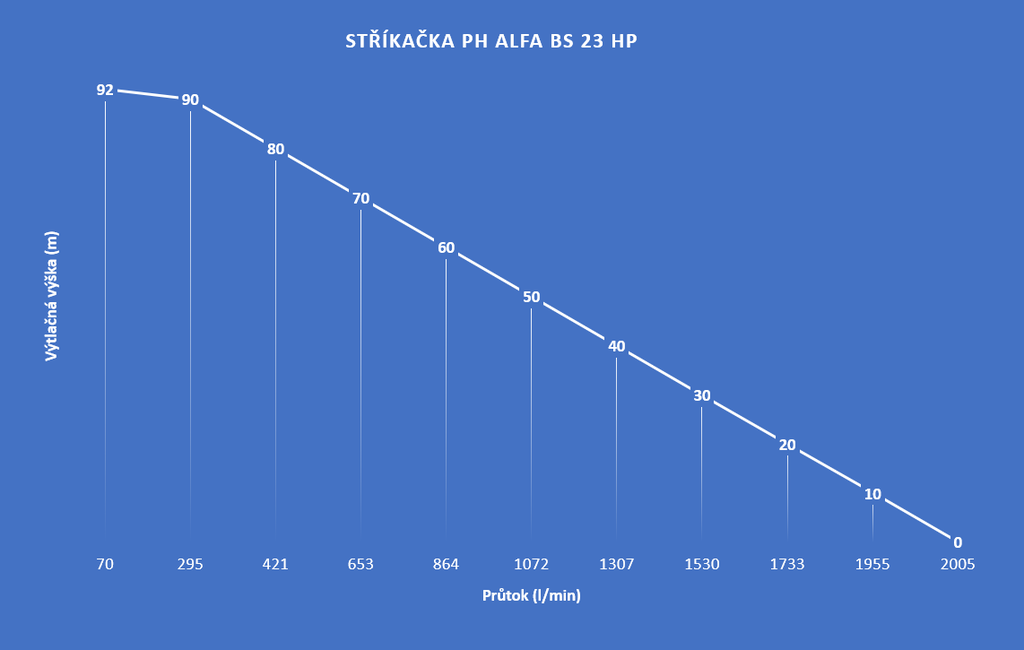

    Main Specifications:

    Max. flow 2 005 l/min
    Flow at 0,5 MPa 1 072 l/min
    Flow at 0,6 MPa 864 l/min
    Total head 92 m
    Max. suction depth 8 m
    Suction connection Storz A110 (4")
    Discharge connection Storz B75 (2,5")
    Engine Briggs & Stratton 23HP
    Engine power 17,2 kW / 23 HP / 3600 rpm
    Integrated fuel tank capacity 8 l
    Fuel unleaded petrol (BA95)
    Device dimensions (L x W x H) 750 x 560 x 670 mm
    Dry weight (empty) 76,2 kg
    Weight (with full tanks) 88 kg





    Cat. number vv 426



    The data was measured by the accredited testing laboratory TÚPO No. 1011-2







    Parameters
    • Engine: Briggs & Stratton 23HP
    • Weight: 88 kg
    • Maximum discharge height: 92 m
    • Max. flow: 2 005 l/min
