The booster fan works on the principle of creating a positive pressure in structures in a mechanical manner using a rotor-turbine which produces a powerful and directed flow of air used for ventilation of the area. It is intended to fight smoke, gases, high temperature and for drying of buildings.
Booster fan PH-VP600/S
SKU: vv 471/S
Manufacturer: Pavliš a Hartmann

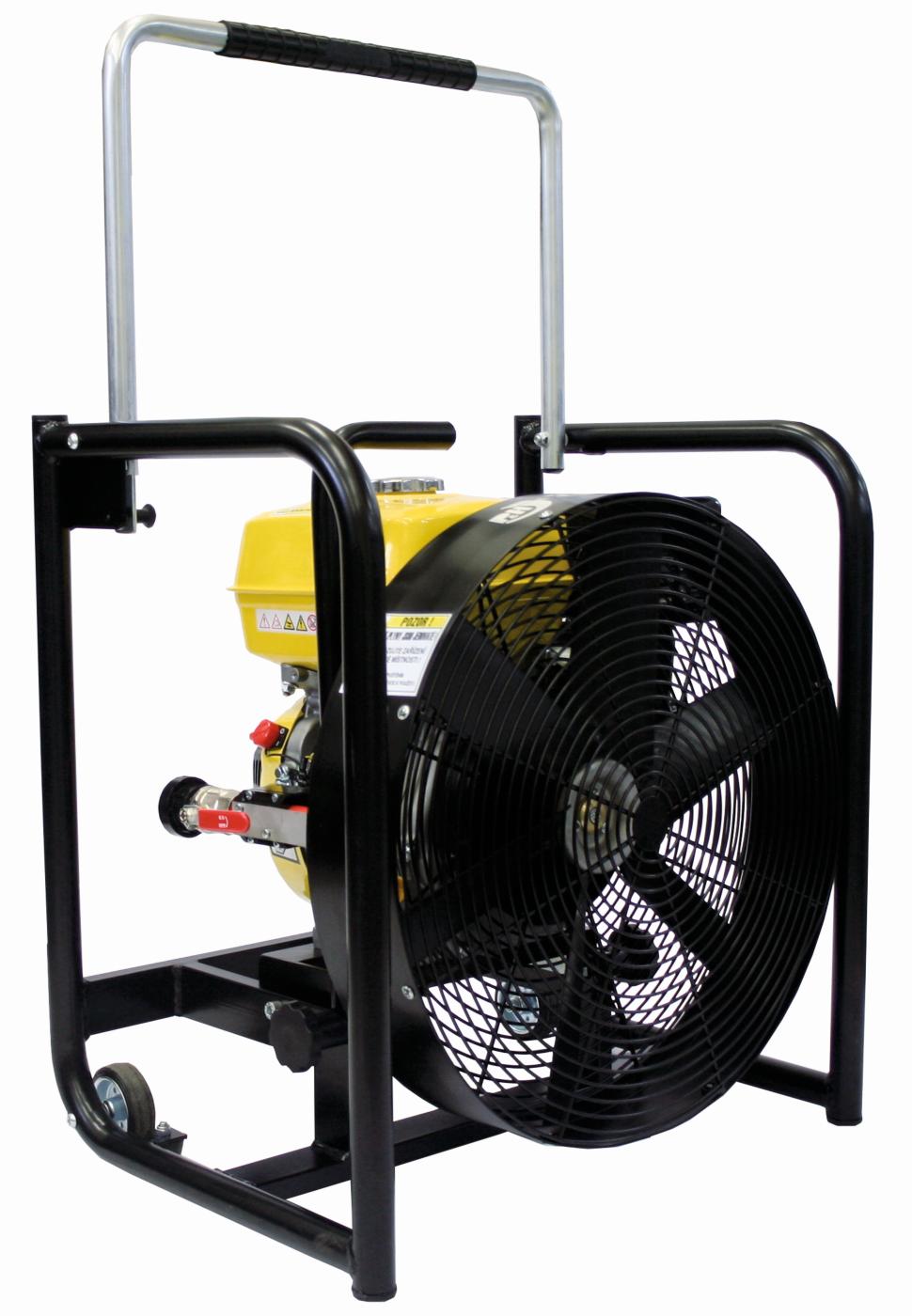

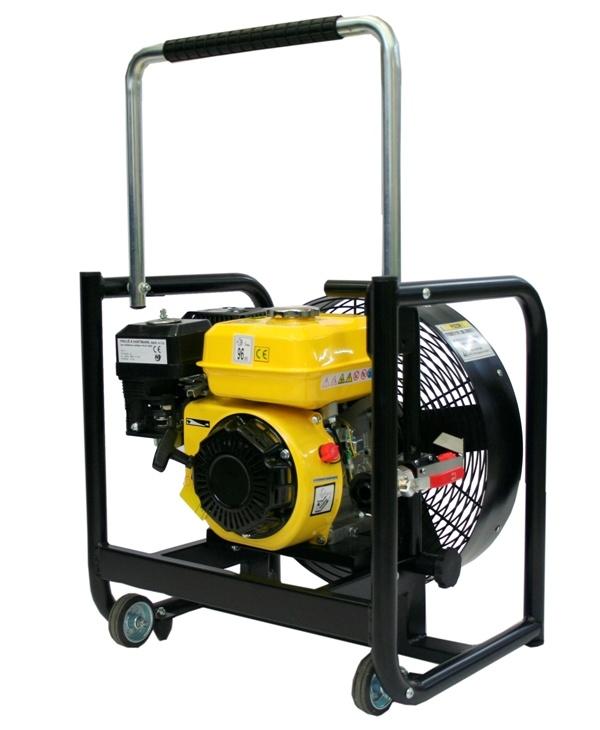

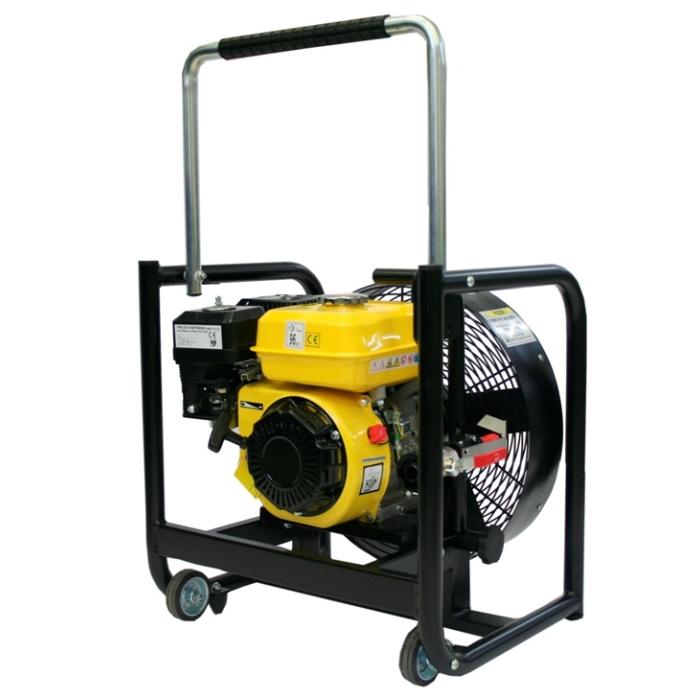

Booster fan PH-VP600/S
Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.
Booster fan PH-VP600/S
A compact, portable and easy-to-control booster fan PH-VP600 is intended for quick ventilation of smoky areas during fires using overpressure - positive pressure ventilation. Its use facilitates fire actions in structures with dense smoke reducing concentration of noxious and explosive gases.
WARNING: The device may not be used in enclosed spaces! Danger of carbon monoxide poisoning!
Main Specifications:
| Rated output | 23 200 m3 / hod |
|---|---|
| Total output | 55 000 m3 / hod |
| Engine | Four-stroke OHV |
| Engine power | 6.3 kW / 8.4 HP |
| Fuel tank capacity | 6 l |
| Fuel | unleaded petrol (BA 95) |
| Impeller | Positive pressure, 6 vanes, diameter 520 mm |
| Max. air speed | 110 km / hour |
| Turbine inclination angle | Adjustable 0 - 18° |
| Device dimensions (L x W x H) | 460 x 630 x 665 mm |
| Dry weight (empty) | 44 kg |
| Cat. number | vv 471/S |
Note: The fan includes a device for producing water fog the amount of which can be controled by a manual valve.
