BATTERY-POWERED FAN PH-VP BAT 450 (3)

    SKU: vv 479

    Manufacturer: Pavliš a Hartmann

    BATTERY-POWERED FAN PH-VP BAT 450 Compact, portable and easy to operate, the PH-VP bat 450 battery-powered positive pressure ventilator is designed for rapid ventilation of smoky areas during a fire by positive pressure ventilation.

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

    BATTERY-POWERED FAN PH-VP BAT 450 (3)

    A compact, portable and easy-to-use overpressure battery fan PH-VP bat 450 is designed for quick ventilation of smoky areas after a fire in a pressurized manner - positive ventilation. Its use facilitates intervention in densely smoky buildings and reduces the concentration of harmful and explosive gases. The overpressure fan works on the principle of creating a positive pressure in buildings in a mechanical way using a rotor-turbine, which produces a strong and directional air flow used to ventilate the room. It is designed exclusively for smoke, gases and high temperatures. The device CAN be used indoors.

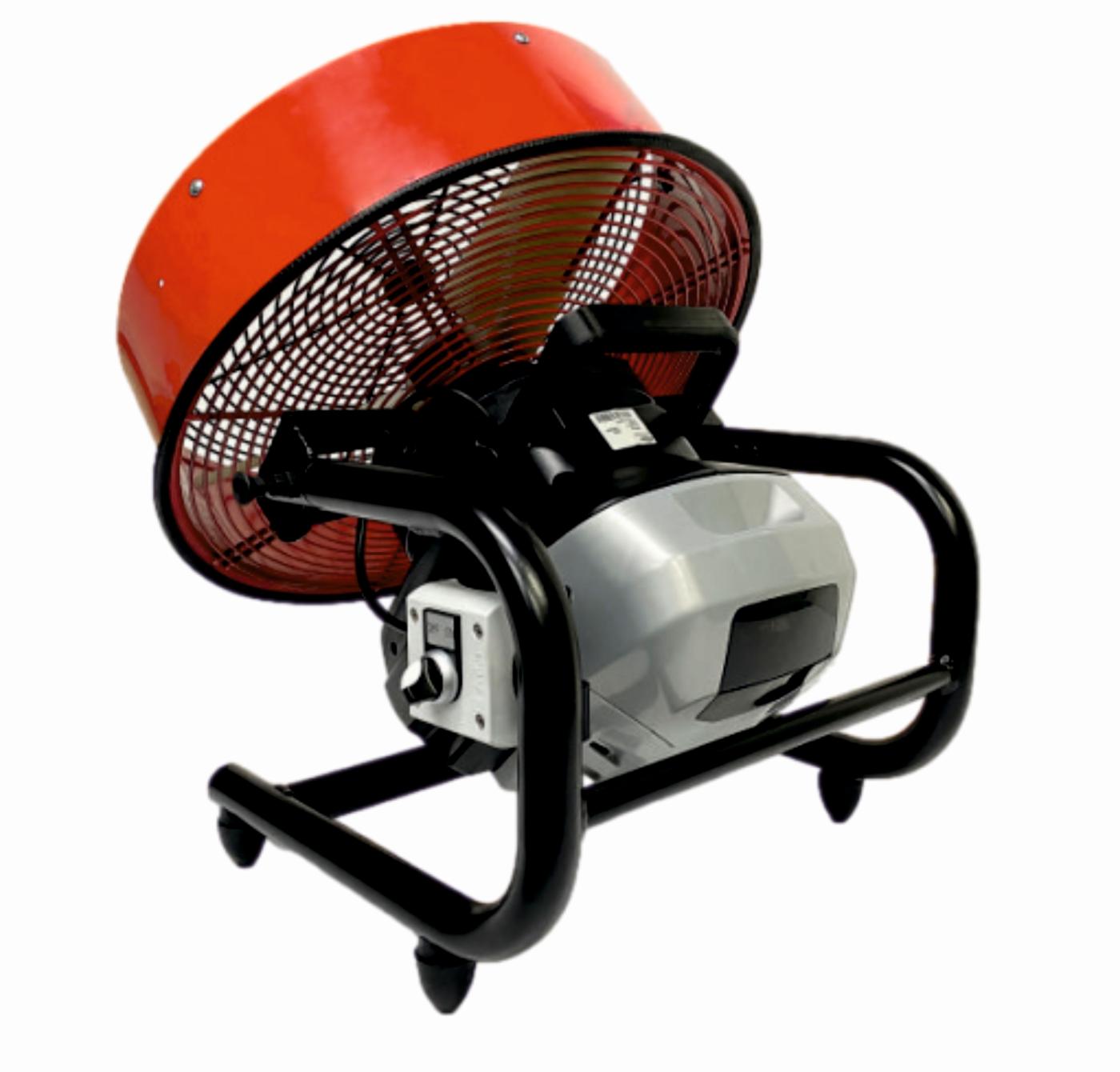

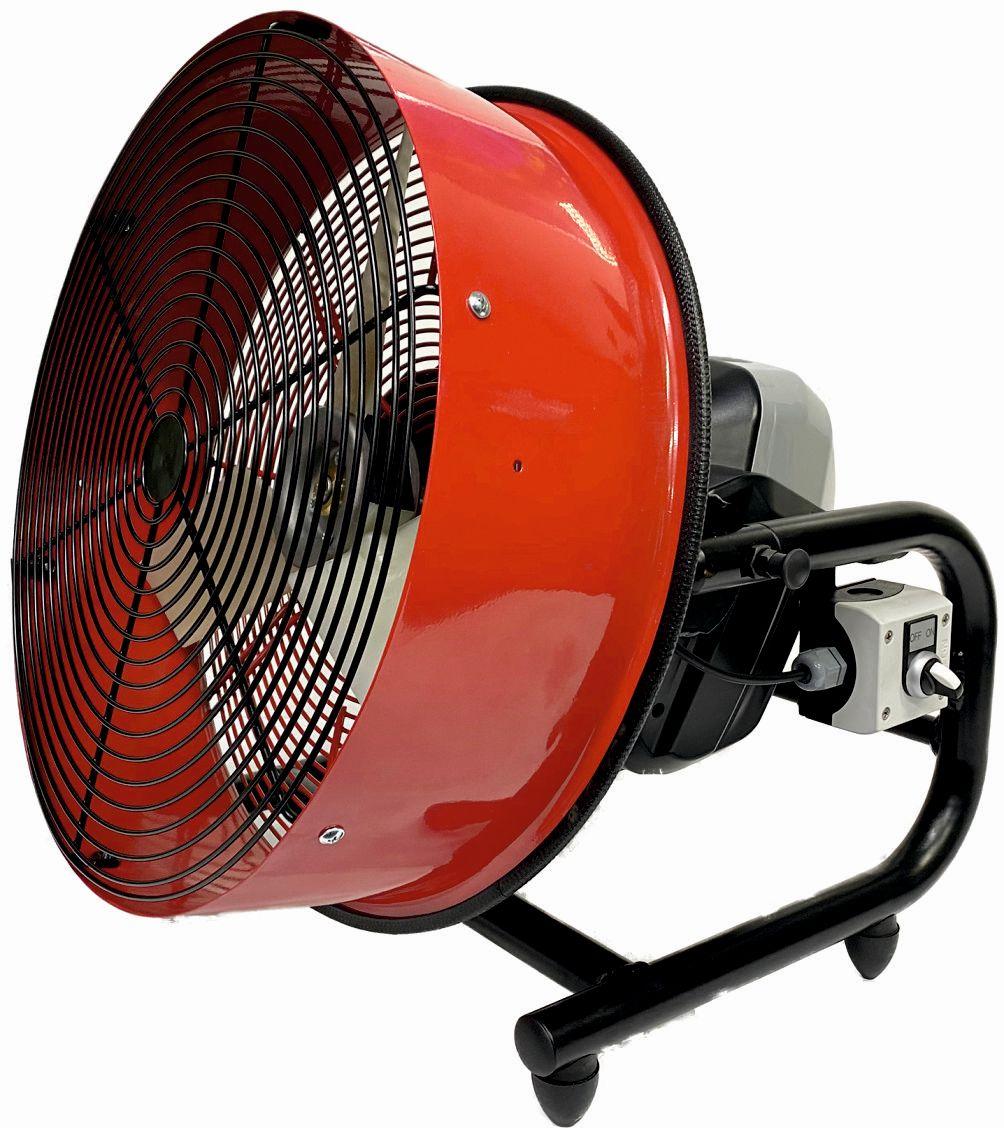

    Compact, portable and easy-to-use turbo fan. Power unit - Briggs and Stratton 82 Li series battery engine with an output of 1.5 kW. The fan impeller is firmly connected to the engine in one unit, it is protected by a sheet metal cover with a grille. The fan frame is made from Aluminium, stably mounted on rubber feet. The device is equipped with a fixed handle, which is used to carry the device and set the angle for air flow. The fan with an output of 6,260 m³/hour is equipped with a battery and a charger. The 9,710 m³/hour fan is equipped with a battery, a charger and one spare battery.

    Specifications:

    Technikal data Propeller type 4 blades  Propeller type 3 blades
    Rated power 6260 m³/hour 9710 m³/hour
    Engine  Briggs and Stratton 82 Li series  Briggs and Stratton 82 Li series
    Engine power 1.5 kW / 1.95 HP 1.5 kW / 1.95 HP
    Impeller overpressure, 4 blades dia. 450 mm  overpressure, 3 blades dia. 450 mm
    Air speed 34,56 km/hour 53,64 km/hour
    Turbine inclination  Adjustable 0 - 25° Adjustable 0 - 25°
    Equipment dimensions  500x525x550 mm 500x525x550 mm
    Weight with battery 16,9 kg 16,6 kg
    Weight without battery 14,4 kg 14,1 kg
    Catalogue number vv 478 vv 479
