Bag 4H Proline

A first-class backpack kit with equipment, designed especially for fighting forest fires or fires in difficult to access terrain.

The BAG 4H is made of waterproof Cordura® fabric with PU coating on the inside. It is equipped with wide shoulder straps allowing adjustment for different body heights. Comfort is ensured by a soft back pad. A pad is also fitted on the front to protect the hoses. The backpack is equipped with a handle for easy carrying.

The D25 Proline hose is designed for use in forest and mountain terrain and where there is an increased risk of mechanical damage. It consists of three layers.  The outer layer is a high-strength PES yarn of rainbow colour, the inner liner is EPDM rubber of black colour and the middle, connecting layer, is of white colour. The hoses are fitted with aluminium couplings.

The C-DCD splitter is used to split the C52 water line into two D25 and one C52 streams. The outlets are equipped with ball valves with the possibility of closing and regulating the individual streams.

The D25 Combination Fire Sprinkler is designed for firefighting with a compact or shower jet with infinitely adjustable spray angle.

The Tajfun Profi D is designed for spraying water with a full or shower jet. It is particularly suitable for extinguishing dusty and easily ignitable substances. The swivel head can be used to continuously change the shape of the jet from full through shower to screen jet and to close the jet. Setting the orifice to the maximum position performs the flushing function. The inlet spout is rotatable and is fitted with a fixed pressure coupling D25.


The Tajfun Profi D/C is designed for spraying water with a full or shower jet. It is particularly suitable for extinguishing dusty and easily ignitable substances. The swivel head can be used to continuously change the shape of the jet from full through shower to screen jet and to close the jet. Setting the orifice to the maximum position performs the flushing function. The spout is rotatable and is fitted with a fixed pressure coupling C52.


The C52/D25 transition is fitted with an Al neck with pressure sleeves.

The Attack Fire Extinguishing Spike is an attack spike consisting of a stainless steel spike body, a spike that has 16 holes with a diameter of 1.9 mm around its circumference, a ball cap and a spout that is fitted with a D25 Ms coupling for a pressure of 40 bar.

The ball cap can be used to close or open the extinguishing spike. This fire extinguishing spike is designed to spray water by direct spraying of mist. When using the spike in a confined space, it is sufficient to create an opening in a door, window, roof, etc., without entering the extinguished space with water mist to eliminate the fire.

The hose connector is a rope with a loop on one side and a wooden peg on the other. It is mainly used to securely attach pressure hoses.

The weight of the whole assembly is about 23 kg.

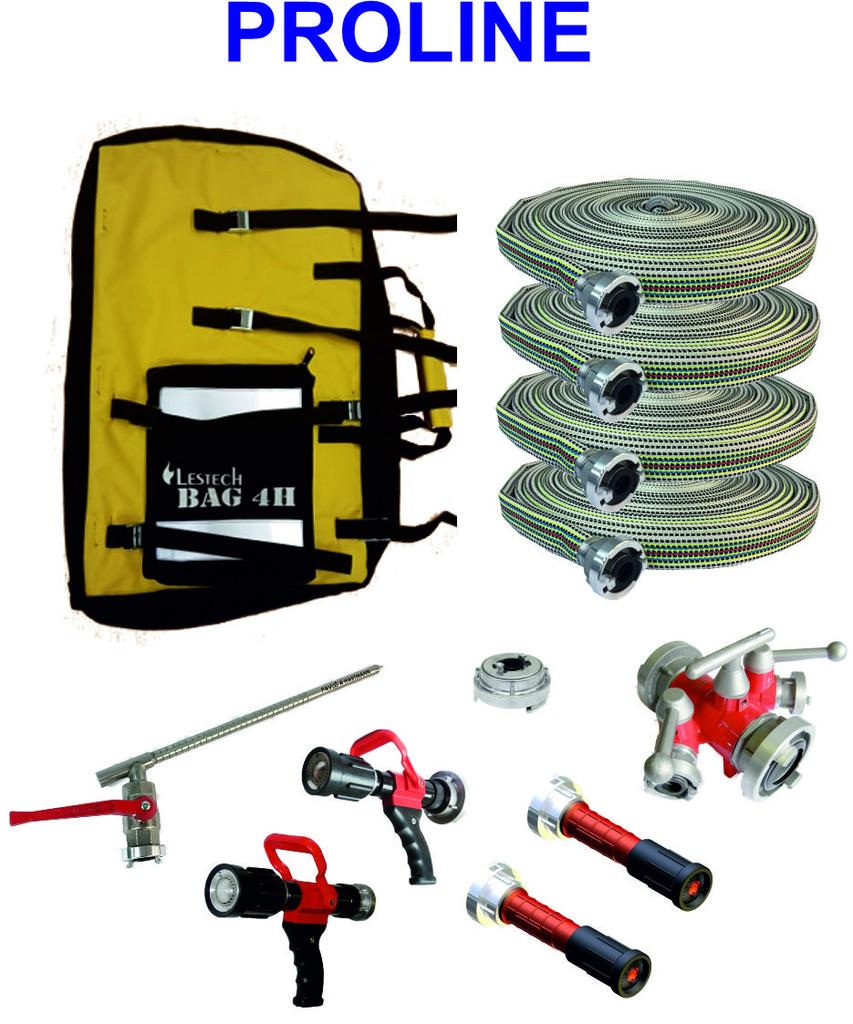

Package contents: 1x BAG 4H backpack 4x Proline D25 hose 20 m long 1x C-DCD distributor 2x fire nozzle D25 combined 1x Tajfun Profi D 1x Tajfun Profi D/C 1x C52/D25 adapter 1x Attack fire extinguishing spike 1x hose tie
