All-stainless steel hydrant system with shape-resistant hose D25 - 20bm - glass door - streamline equ.6

    SKU: svv 058

    Manufacturer: Pavliš a Hartmann

    Fire hydrant systems with semi-rigid hose represent a very effective fire-fighting facility with an uninterrupted supply of water immediately.

    Do you have a question about this product? We will be happy to advise you on phone +420 466 985 890 or e-mail office@phhp.cz.

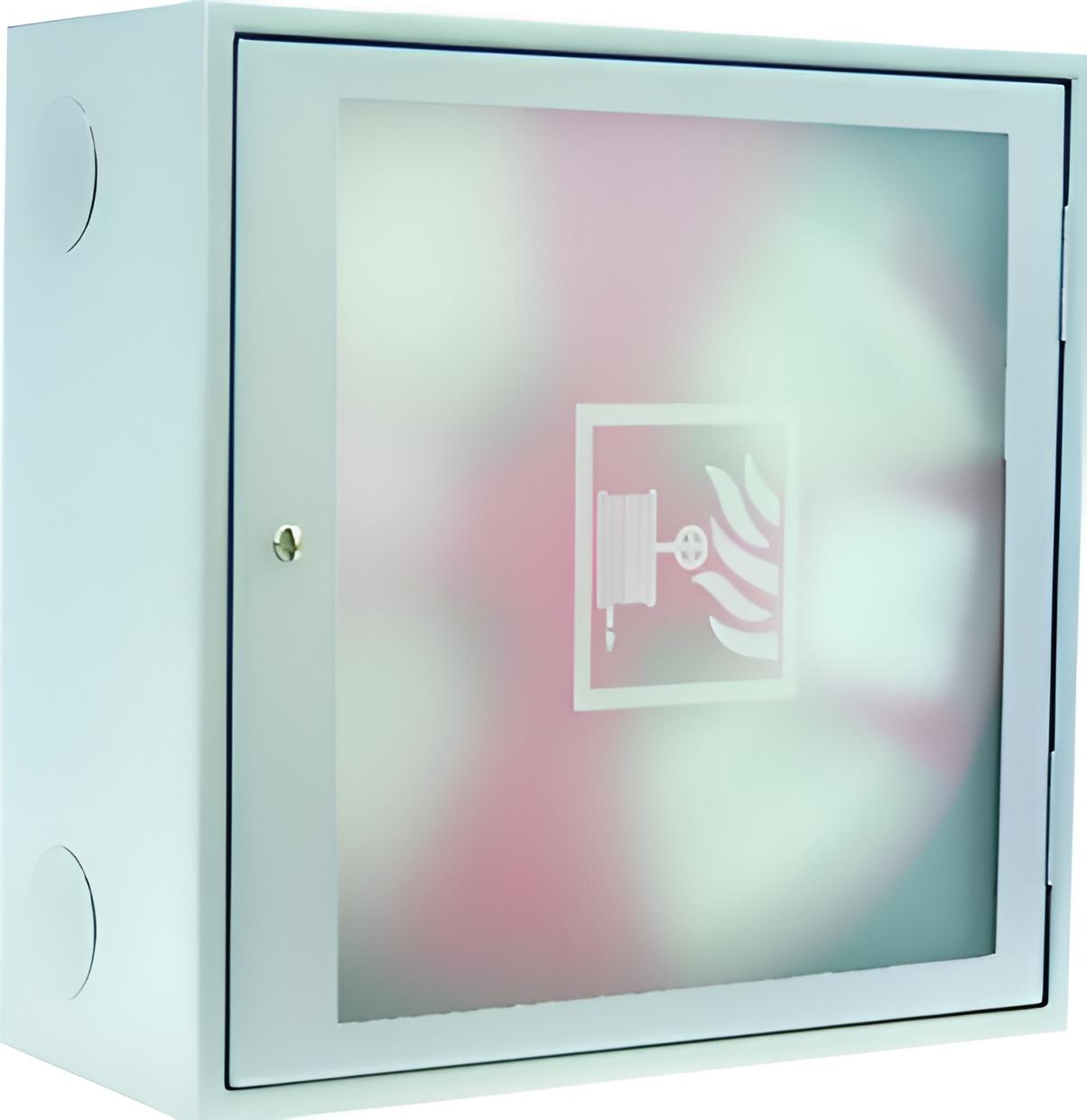

    All-stainless steel hydrant system with shape-resistant hose D25 - 20bm - glass door - streamline equ.6

    Approved to ČSN 73 0873 and ČSN EN 671-1, surface mounted design

    Fire hydrant systems with semi-rigid hose represent a very effective fire-fighting facility with an uninterrupted supply of water immediately. The design of the system allows quick operation by a single person.

    Hydrant system includes

    1. Hydrant cabinet – made of stainless steel sheet. All-steel-sheet design with solid or glass-panelled door. Magnet lock with a possibility to be sealed.
    2. PH – Stabil D semi-rigid hose of 25 mm diameter.
    3. Nickel-plated brass ball valve D25-1”.
    4. D25 spray fire nozzle consisting of a polypropylene body and a revolving head. The revolving head enables the user to set a jet or spray stream with an adjustable spraying angle within the range 0 – 110° and to shut off the nozzle.
    5. Connection hose used to connect the system to water main.

    Dimensions

    width x height x depth

    Hydrant systems with D25 mm semi-rigid hose

    • 650 x 650 x 285 mm – 20 or 30 m hose can be used Nozzle options: equiv. to 6 mm diam. – flow rate Q < 1.1 l/sec equiv. to 10 mm diam. – flow rate Q > 1.1 l/sec

    Inspection of hydrant systems is to be undertaken by a trained person in accordance with applicable standards and regulations.

    All stainless steel hydrant system

    Cabinet material  Door  Hose Fire nozzle Cat. No.
    stainless steel sheet solid 30m of D25 equiv. 6 svv 053
    stainless steel sheet solid 20m of D25 equiv. 6 svv 054
    stainless steel sheet solid 30m of D25 equiv. 10 svv 030
    stainless steel sheet solid 20m of D25 equiv. 10 svv 033
    stainless steel sheet glass-panelled 30m of D25 equiv. 6 svv 057
    stainless steel sheet glass-panelled 20m of D25 equiv. 6 svv 058
    stainless steel sheet glass-panelled 30m of D25 equiv. 10 svv 055
    stainless steel sheet glass-panelled 20m of D25 equiv. 10 svv 056
    Parameters
    • Hose - diameter: D25
    • Hose length: 20 m
    • Nozzle: eq. 6
    • Dimension: 650x650x285 mm
    • The door: glazed
    • Colour: all-stainless
